Basic ventilation software 7650

Ventilation measurement application software for remote control of photoacoustic gas monitors and sampler and doser units.

This software is especially developed to perform quantitative air exchange and air flow analysis using the tracer gas method principles.

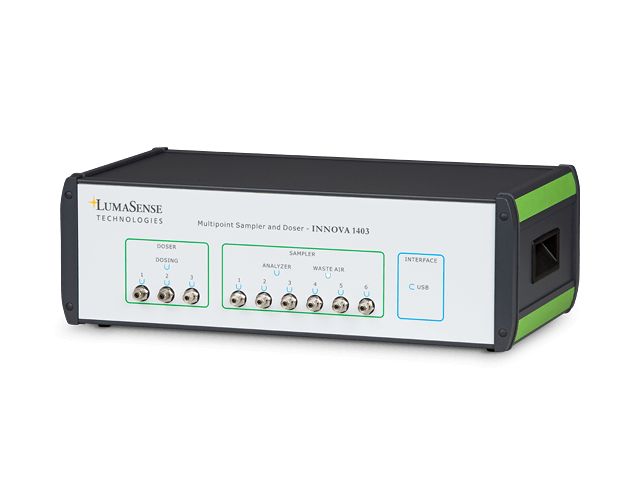

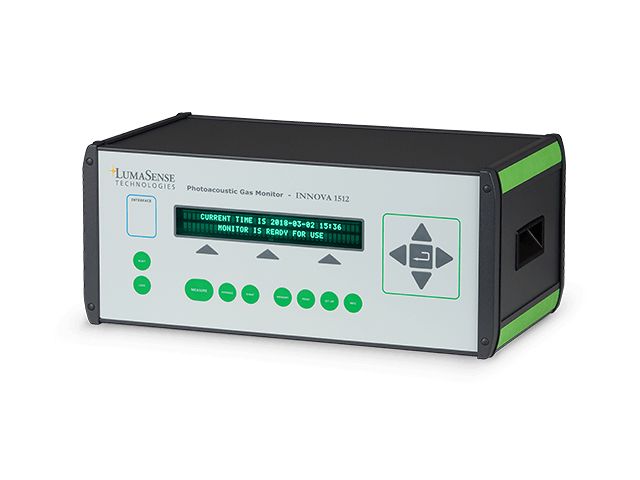

Synchronizes the sampling and dosing functions of the Multipoint Sampler and Doser unit (INNOVA 1403) to the measurements cycle of the Photoacoustic Gas Monitor (INNOVA 1512)

Calculates the air-exchange efficiency, age-of-air and other parameters for each location (i.e. control volume)
Dosing is remote-controlled.

Dosing can either be pulsed injection for decay measurements or constant dose for flow measurements.
Measurement is run automatically and the measurement results are presented in graphical and numerical views.

The measurement can be used to calculate parameters like Age of Air, Air Exchange and others by using cursors to mark an interval.

The Basic Ventilation Software 7650 is especially developed to perform quantitative air exchange analysis using the main tracer-gas methods: Concentration decay and constant injection

The 7650 can control one 1512 and one 1403 unit. The 7650 Basic Ventilation Software is able to perform ventilation measurements by controlling both hardware and software in the instruments.

The user sets up the Gas Monitor with Gasses to be measured and the sampler and doser unit by selecting up to 6 sample channels and 1 out of 3 doser channel.

Measurement data and the running status of the instruments are displayed on-screen. Data can be backed up and exported to csv or Excel files for further analysis and documentation.

The Basic Ventilation Software 7650 serves as :

• System setup interface with a comprehensive list of options,
• Remote control for the synchronization of the monitoring, dosing and sampling task,
• Graphic user interface for the online supervision of on-going measurement, and the post-processing of data.
