Bi-Directional Zero-Drift Current Sense Amplifiers : NCS21X EBV ELEKTRONIK

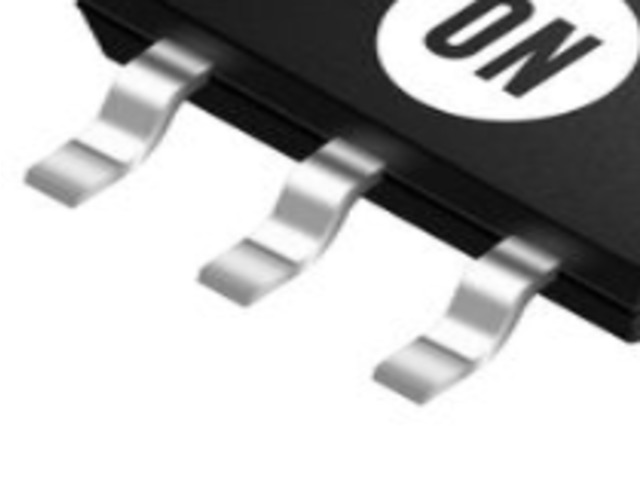

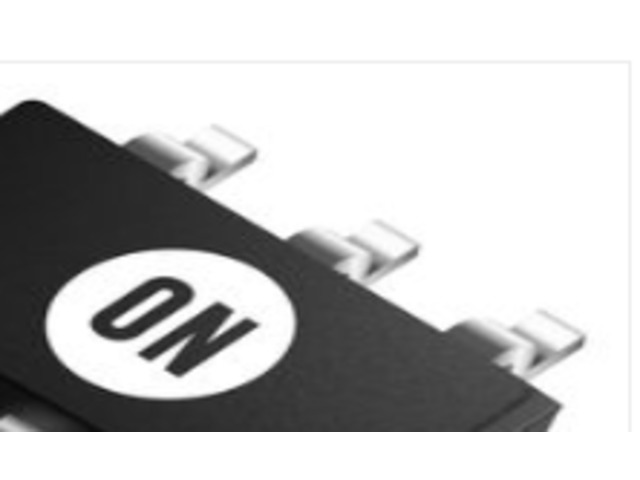

Bi-Directional Zero-Drift Current Sense Amplifiers : NCS21X

Power supply, Converter, Regulator

Vote

Ask for a quote Receive Documentation Contact the supplier

Six fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero−drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full−scale.

The devices can operate from a single +2.7 V to +26 V power supply, drawing a maximum of 100µA of supply current. All versions are specified over the extended operating temperature range (-40° C to +125° C).

Wide common mode input range -0.3 V to 26 V Supply voltage range from 2.7 V to 26 V Low offset voltage ±60 µV Max Low offset drift High-Side Current Sensing for High Voltage Systems Flexible System Supply Voltage Low Value Current Sense Resistors for Better Power Efficiency Temperature Sensitive Applications
