BT Class1-Data - Class1 Bluetooth® module

PRODUCTS (27)
CATALOGUES (3)
WHITE PAPERS
PRESS RELEASES

This product is temporarily unavailable.
Think about consulting similar products.

“ Features * Bluetooth 2.1 stack (Chipset CSR Bluecore4-Ext) * Baseband - Link Manager - L2CAP - RFCOMM - SDP - SCO * Data profiles: SPP - OPP - DUN Performance * Frequency: FHSS / 2.402 to 2.480GHz * Radiated RF power: 100mW (20dBm) with integrated antenna * RF sensitivity: -86dBm (BER 10-3) * Range: up to 150m * Air rate: up to 3Mbps EDR Power consumption & requirements * Operating voltage: 3.3V typ (from 2.85V to 3.6V) * Max TX consumption: 300mA * Typical RX consumption: 50mA * Standby consumption: 1 to 6mA Interfaces * UART with flow control * PCM * UART programmable speed: from 9.6 to 921.6kbps General information * Operating temperature: -35°C / +70°C * Dimensions: 32 x 14 x 3 mm * Standards: EN 300-328 / EN 301-489 / FCC part 15 / IC * Mounting: SMD ”

Ask for a quote

Presentation

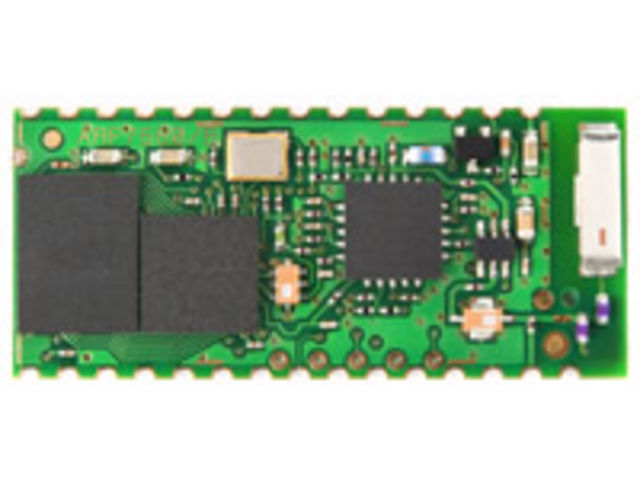

This miniature module allows a two-way Bluetooth® transmission over a range of 150m.

This module is fully compliant with the Bluetooth® V2.0 + EDR (Enhanced Data Rate) standard.

The transmission and configuration of data is done via a UART serial interface TTL type. The raw throughput goes up to 3Mbps . It is equipped with an integrated antenna or a uFL antenna connector.
