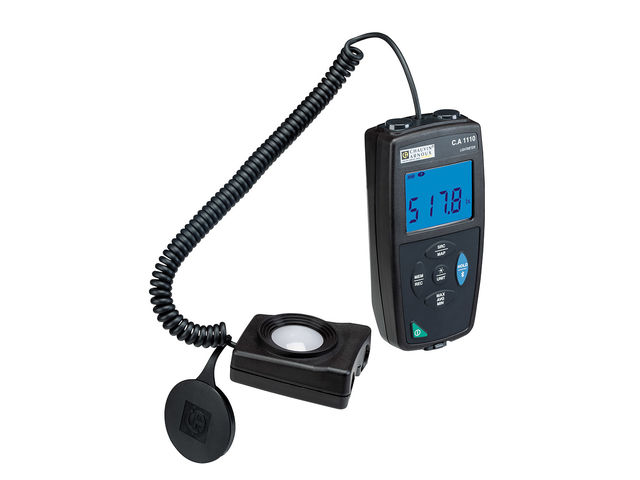

C.A 1110 Lightmeter

Light meter

Vote

“ Spectral error compensation for LED or fluorescent sources MAP function for mapping the illuminance of a surface or room C.I.E. spectral correction and incidence correction Wide backlit display Remote probe limiting the risk of the operator shading the sensor or built-in probe for one-handed use Recording up to 1 million points Communicating via USB or Bluetooth Data Logger Transfer software with automatic report generation ”

Ask for a quote

Presentation

The C.A 1110 luxmeter measures the illuminance of all light sources (LED, Fluo. etc.) up to 200,000 lux in compliance with Class C of the NF C 42-710 standard.
With the MAP function, you can produce a map of a surface or room in order to check that the illuminance is uniform.

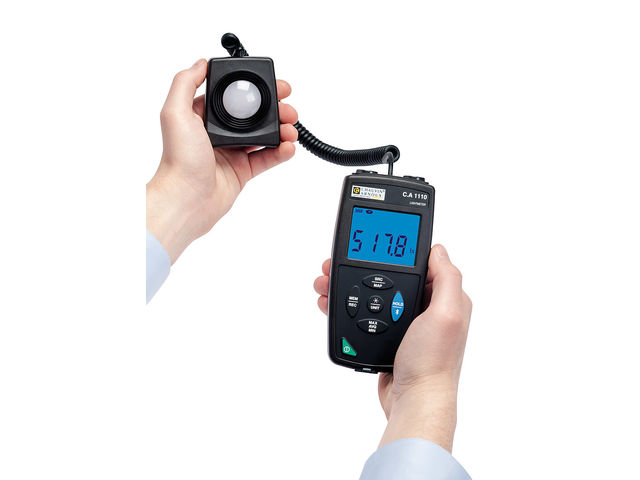

Because it is magnetic, the sensor can be fixed to the product for one-handed use or for easy transport, but it is also possible to use it remotely to avoid shading by the operator.
The C.A 1110 also offers Min, Max, Average and Hold functions, as well as allowing spot or programmable recording.

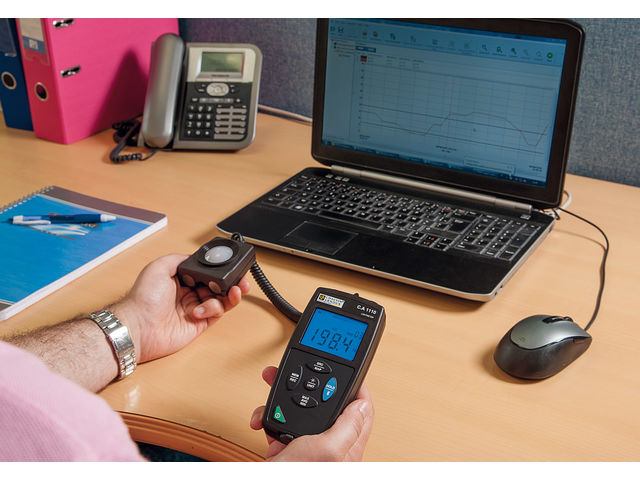

The Data Logger Transfer software is available for free download to view the recorded data, configure the C.A 1110, benefit from remote display and generate automatic reports.

Additional specifications:
Intrinsic uncertainty without compensation:

± 3% of the reading on incandescent sources (default)
± 6% of the reading on LEDs (3,000 K to 6,000 K)
± 9% of the reading on fluorescent sources

Technical features

Measurement range: 0.1 lx to 200,000 lx (lux) Min, Max, Average, MAP and Hold functions, lx or fc / Backlighting Recording up to 1 million points USB or Bluetooth interfaces IP50 casing Casing dimensions: 150 x 72 x 32 mm / Sensor: 67 x 64 x 35 mm Weight: 345 g with batteries Compatible with the Multifix accessory Shockproof protective sheath available as an accessory

Download the complete technical features
