Cable measuring device VCPLab iiM AG measurement + engineering

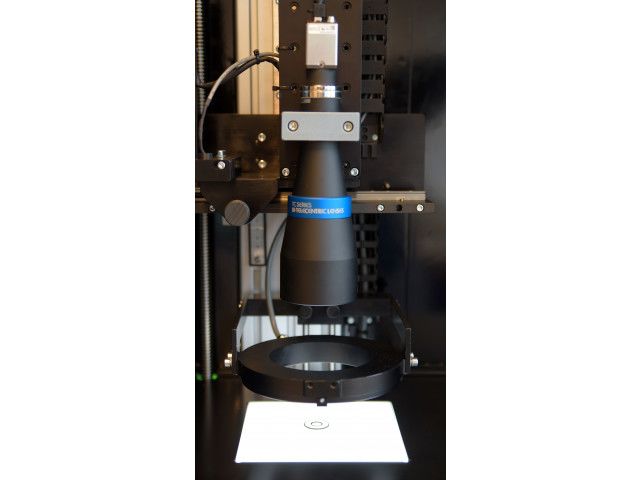

Cable measuring device VCPLab

Devices and Software

Vote

Ask for a quote Receive Documentation Contact the supplier

Device details: ■ Robust case seals against extraneous light ■ Central control unit ■ Semi-automatic focussing and illumination ■ Safe from impacts and vibrations ■ Quasi shadow free transmitted light ■ Optimal system status for lighting, optics and camera ■ A measurement with 2 cameras is possible ■ Adjustable operation distance for 2D measurements in laboratories ■ Very precise measurement due to high resolution sensors ■ Standardised individual components ■ Very easy measuring procedure ■ Measurement according to IEC 60811 -201, -202, -203 ■ Suitable software FMC-3 and CAQ-System ProCable available

Size (Width x Height x Depth): 810x410x1070mm / 25.6 x 14.2 x 42.2 In. Weight: 62 kg / 136.7 lbs Measuring range: < 1 mm - 45 mm outer diameter Supply Voltage: 100 - 240 V / 50 - 60 Hz Input Power: max. 100 W Resolution: 4mm width=4μm/Pixel/36mmwidth=6μm/Pixel Camera: up to 2 cameras Lighting: LED Version 1K (one camera): up to 25 mm (0.98“) outer diameter Version 2K (two cameras): up to 38 mm (1.49“) outer diameter
Download the complete technical features
