Twist Length Detector TLD

Devices and Software

Vote

Ask for a quote

Presentation

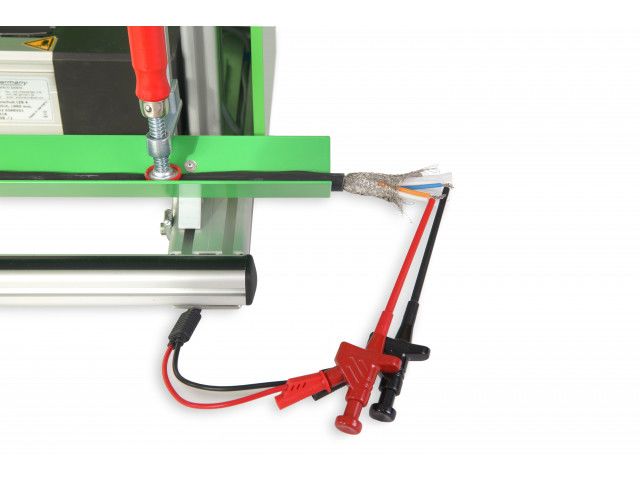

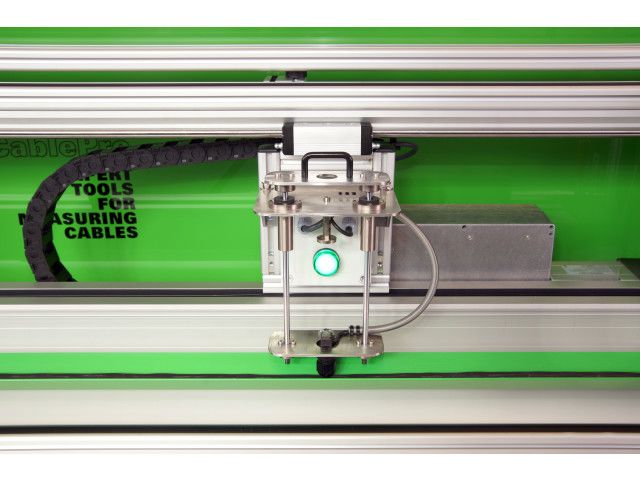

Device details: ■ Measurements according to the standards LV212 und LV122 ■ The twist length of the samples is measured without removing the sheath → this ensures a precise measurement ■ Traditional methods manipulate the sample (cable stripping / unwinding of conductors) → a precise measurement is not possible anymore ■ Via an optional PC connection, the measuring results can directly be exported ■ Fully automatic: By clicking one button, the measuring sensor automatically moves along the sample Results: ■ Result file: It is possible saving the following result data into a text file (export function): ▪ Amount of twists ▪ Measured distance (distance from the first twist to the last overlapping twist) ▪ Driving distance oft he sensor ▪ Minimum / Maximum twist length ▪ Average of the detected twist lengths Calibration: ■ The calibration is performed with an especially designed master-sample (calibration piece)

Technical features

Width x Length x Height: 1320 x 420 x 480 mm | 52 x 16.5 x 18.1 Inch Weight: 43 kg | 95 lbs Supply Voltage: 100 - 240 V | 50 - 60 Hz Input Power: max. 100 Watt Material: Aluminium, Stainless Steel, PVC Measurable twist lengths: min. 10 mm | 0.39“ / max. 1000 mm | 39“ (with the standard measuring distance of 800 mm) Measuring distance: 800 mm | 31.5“ ATTENTION: Customizations possible on request Sample outer diameter: min. 2 mm | 0.08“ (requires an adapter for fixing thin cables) Driving speed of the sensor: The speed can be set in the configuration file

Download the complete technical features
