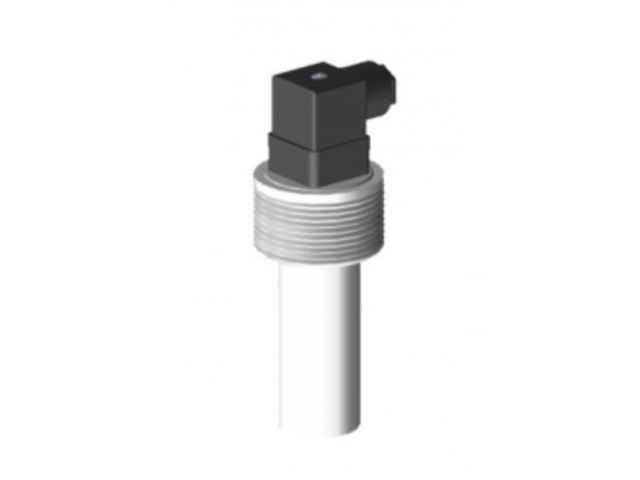

Capacitive sensors Series SCRR et SCR TECFLUID

Capacitive sensors Series SCRR et SCR

Level sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

Capacitive sensors work with the DNAS / DNAT amplifier relays for maximum and / or minimum level control. Application areas:  These sensors are provided for detecting the level of grains, powder, peanuts, chemical products etc... Technical specifications:

Body Material: PVC or PTFE

Process connection: R 1'' 1/2 BSP

Electrical Connection: DIN43650

Voltage: 30 V maximum

Frequency: 500 Hz maximum

Consumption: ON: 5 mA maximum

                       OFF: 15 mA maximum

Sensitivity: Adjustable by potentiometer 15 turns

Working temperature: -15 ° C ... +70 ° C

Detection distance: 4 .. 12 mm, LED indication

Maximum pressure: 10 bar to 60 ° C

Max. cable <200 m

Protection: IP 65

Relay amplifiers:  PNAS-PNAT / DNAS-DNAT
