Carbo 520 Optical

Structural analysis

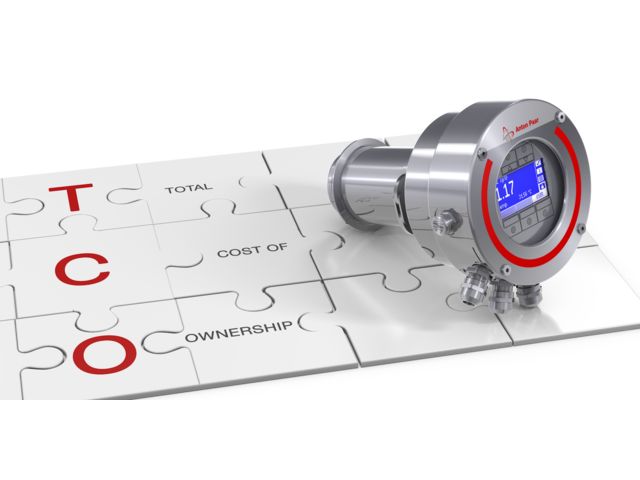

“ Save Money - Low Total Cost of Ownership (TCO) Save on operating costs: While conventional CO sensors can become very expensive in the full lifetime due to recurring maintenance, Carbo 520 Optical does not need maintenance. Seamless welded optics No moving parts subject to wear Self-diagnosis according to NAMUR NE 107 Be flexible - product independent measurement Spend your time in production: The Carbo 520 Optical device measures any type of drink without requiring specific or laborious adjustments to the product. The unique and patented* compensation of the extract or sugars ensures independent operation of the product. Whether it’s soft drinks, beer, wine or sparkling water, Carbo 520 Optical makes your product changes easier. Automatic extract compensation through multi-channel measurement Recipe without CO measurement Always ready to operate - even after PAC Our patented internal trapping technology* eliminates the risk of incorrect measurements due to residual CO. This prevents drift at any time, even after the CIP procedures, where the CO is released into the sensor housing. The Carbo 520 Optical device is EHEDG hygienic, which reduces time and effort during the cleaning procedures listed above. Be continuously connected to your production line The Carbo 520 Optical is part of our well-established intelligent sensor platform. This concept ensures connectivity to Anton Paar laboratory systems via Davis 5 and also offers a wide range of communication protocols: Digital and analog inputs and outputs PROFIBUS PROFINET EtherNet/IP Modbus TCP Available in the following three configurations: Carbo 520 Optical intelligent sensor combined with mPDS 5 evaluation unit Intelligent Carbo 520 Optical sensor with display (OT) - measurement values are displayed directly on the instrument, no evaluation unit is required Carbo 520 Optical Intelligent Sensor with Remote Display (ROT) - can be installed up to 250 meters away from the sensor * AT 512 375 B1, CN 103 257 125 B, US 9 063 083 B2, AT 512 291 B1 ”

Ask for a quote

Anton Paar’s patented* innovations offer you real values: for any drink - at any time.

With the new Carbo 520 in-line optical sensor, you always know the current CO concentration for all drinks on the line of your process. In addition to process monitoring, the 4-second measurement interval allows loop control of the CO saturator.

Save time - ready to measure from the first second
Take advantage of a simple measurement method and start the measurement immediately after installation without wasting time. With this unique and patented* model to determine CO concentrations from measured values, the factory setting allows the direct use of Carbo 520 Optical from installation.
