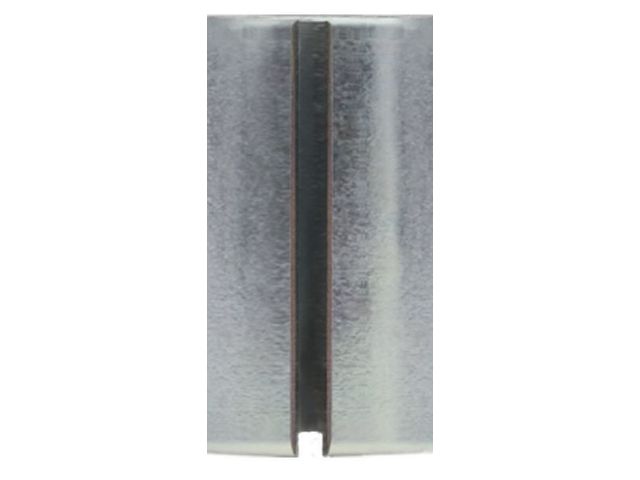

Series CL200 Split Seam: The Series CL200 Compression Limiter is produced from high carbon steel and intended for post-mold installation.
The spring force generated during installation provides self-retention in the assembly. The flexible diameter accommodates wide hole tolerances, yet the gap is designed to be less than the material thickness, therefore they will not interlock in the free state. The CL200’s are rated for use up to ISO Class 8.8/Grade 5 bolts.
If the application requires it, the CL200 can be heat treated (to order) for use up to ISO Class 12.9/Grade 8 bolts. When applications can be designed around the Series CL200 standard range, this series offers the lowest total installed cost.
