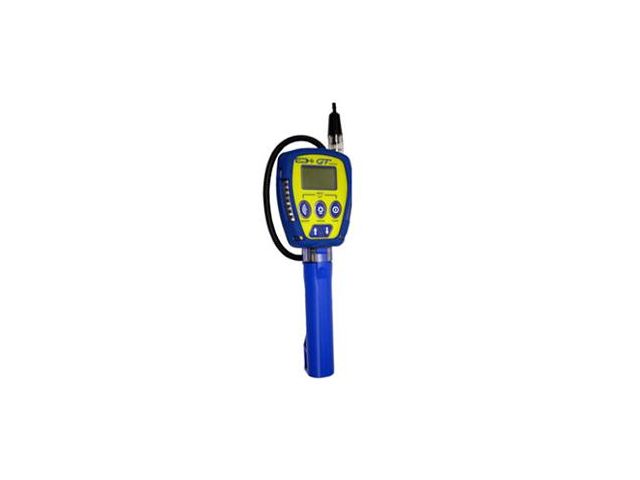

CH4 / LEL / CO / H2S / 02 leak detector | Teledyne GT Series

The GT series is a leak detector suitable for the following operations: Leak testing, entry into confined space, drilling testing, carbon monoxide, purging, sniffer and pressure sealing.

Applications: Leak testing, confined space entry, drilling testing, carbon monoxide, purging, sniffer and pressure tightness

Types of gas: Carbon monoxide (CO), flammable gas (LEL), methane (CH4), hydrogen sulfide (H2S), oxygen (O2)

Available modes:

Gas leak: measures methane under 3 different scales (ppm, LEL and Vol). Automatic switching between scales.
Confined spaces: simultaneously measure 4 gases (O2, LEL, H2S and CO) with appropriate alarms and recording of values.
Carbon Monoxide: measures CO leaks using 3 approaches: direct, differential or compensated (if an O2 cell is integrated).
Barhole: Multi-sampling.
Purge: measures methane at 0-100 vol% scale in inert atmospheres.
Sniffer: measures methane micro-leaks thanks to the semiconductor cell located at the end of the probe. Audible and light alarms make it possible to precisely determine the areas of leakage.
Pressure: In this mode, the instrument can be used as a pressure gauge to measure the pressure of the device (via its sensor on the back of the device) and check for leaks (0 to 150 mBar (resolution 1 mBar).
Benefits:
• PPM, LEL / LEL and flammable gas ranges in Vol% Methane for leak detection
• Manual and automatic data logging
• Powerful and highly visible sound counter (Geiger) in the ppm range
• Integrated torch
• Alkaline or rechargeable batteries option
• Charging by simple power cable or docking station
• Robust polycarbonate housing with IP54 protection
