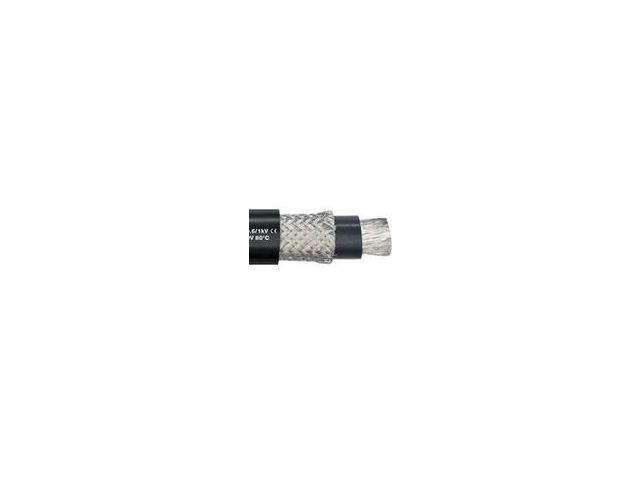

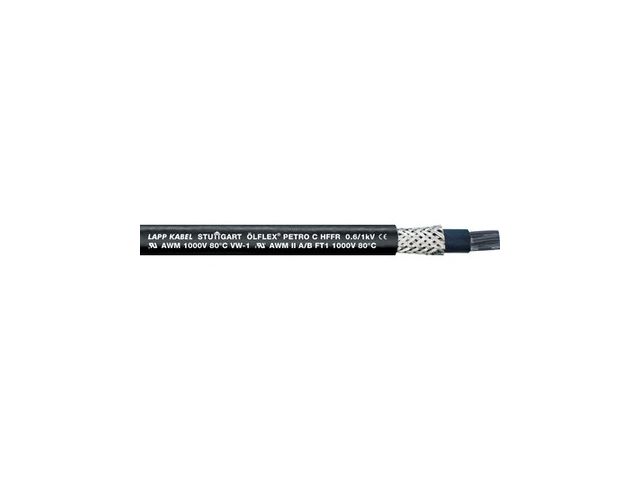

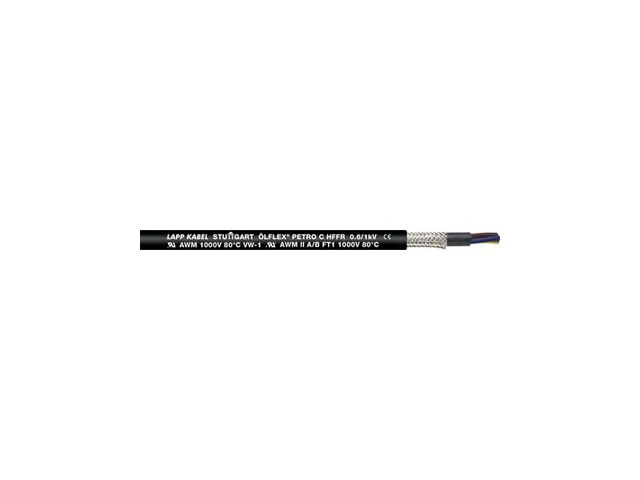

Chemically and mechanically robust cable | ÖLFLEX PETRO C HFFR 5G4 BK

ÖLFLEX® PETRO C HFFR - Screened power and control cable for oil-, mud- and abrasion resistant use in harsh offshore conditions with UL/cUL certification

• Resistant to oil and drilling fluids
  according to NEK TS 606:2016 (Oil & Mud)
• Highly flame retardant
• UL/cUL certified for North America

• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Reduced flame spreading increases the protection against damage to persons and property in the event of a fire
• Wide temperature range for applications in harsh climatic environments
• Copper braiding screens the cable against
  electromagnetic interference
• Can be used in many applications from different industries due to its mechanical, thermal and chemical properties

• Onshore and offshore applications
• For electrical connection of drilling units, pumping stations, compressors or generators in harsh environmental conditions
• Particularly in wet areas of machine tools and transfer lines
• Chemical and petrochemical industry
• For indoor and outdoor use

• Resistant to oil and drilling fluids according to NEK TS 606:2016 and IEC 61892-4
• Fire behaviour:
  - Halogen-free according to VDE 0472-815
  - Flame-retardant according to IEC 60332-1-2
  - No flame propagation according to
  IEC 60332-3-22 cat. A
• UV-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396
• Salt water-resistant according to UL 1309

• Single-core versions:
  USA: UL AWM Style 11624
  Canada: cUL AWM II A/B
• Multi-core versions:
  USA: UL AWM Style 20234
  Canada: cUL AWM II A/B

• Fine-wire, tinned-copper conductor
• Core insulation: polyolefin compound
• Cores twisted in layers
• Inner sheath: halogen-free compound
• Tinned copper screen braiding
• Outer sheath made of robust special polymer, colour black
