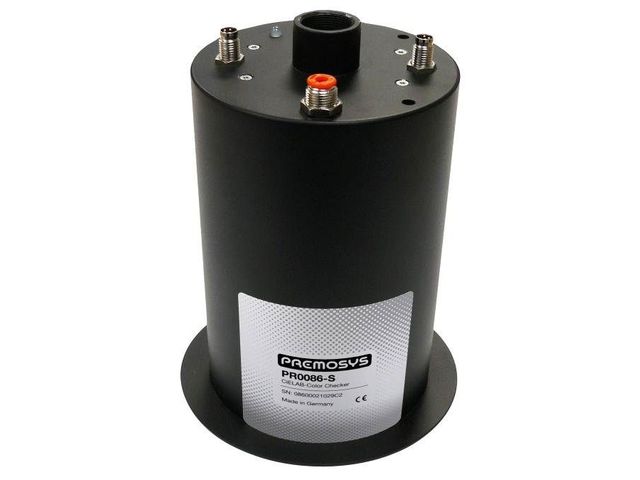

CIELab Color Checker PR0086-S

Other measuring systems

This product is temporarily unavailable.
Think about consulting similar products.

“ - Power Supply 24V DC - Interface RS 485 - Absolute accuracy ~1.6 dE (in average) - Relative accuracy Less than +/-0.5 dE (among the systems) - Optimum operating distance 70mm (CIELab) - Measuring surface 70mm at 70mm operating distance - Measuring rate ~10Hz - Lighting Integrated LED's - Temperature compensation 10 to 55 degrees Celsius - Measuring method Differential measurement - Output CIELab, Chromaticity and Tristimulus via serial interface - WIN32-DLL available - Dust protection Air supply 2mm - Material Stainless steel coated ”

Ask for a quote

Presentation

The system CIELAB Color Checker PR0086 is an on-line color-measuring system, adjusted to an high absolute color accuracy.

A color adjustment by means of an absolute calibrated reference spectrometer is carried out in factory.

The absolute accuracy in average is ~1.6 dE. The relative accuracy also between the systems is less than +/-0.5 dE.
