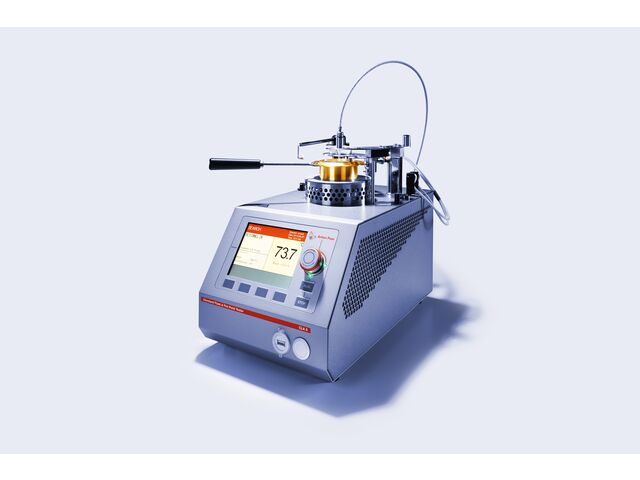

Cleveland Flash & Fire Point Tester: CLA 5

Analyzers

Vote

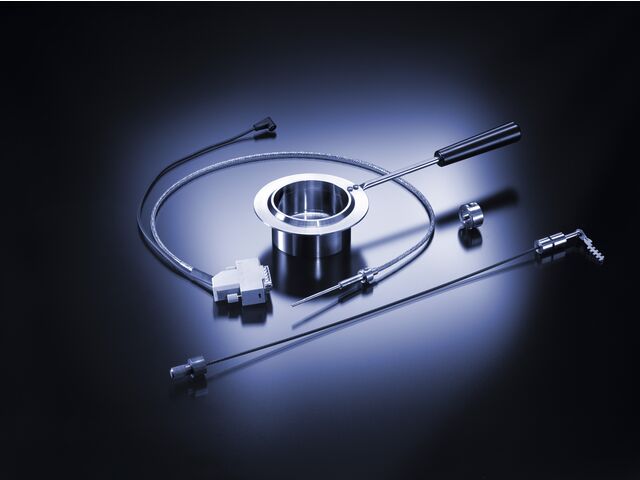

“ Convenient Operation Test initiation by pre-installed standard test methods and ability to customize methods by 10 user-defined programs. Alert messages for out-of-spec results Pt100 sample temperature probe calibration either by dynamic calibration against certified ASTM thermometer or by correction table with 21 calibration points. Calibration protocol printout 5.7” color graphics display shows real-time measurement Menu navigation by jog shuttle system with easy turn-and-push operation and color-coded LED indication for each operation mode Data handling via USB stick for import into MS Excel® or to LIMS Customized User Flexibility PC-software FPPNet (optional) for convenient remote handling and test data storage Automatic skin removal kit (optional) Draft deflector (optional) Stainless steel sample temperature probe Pt100 (optional) ”

Ask for a quote

Presentation

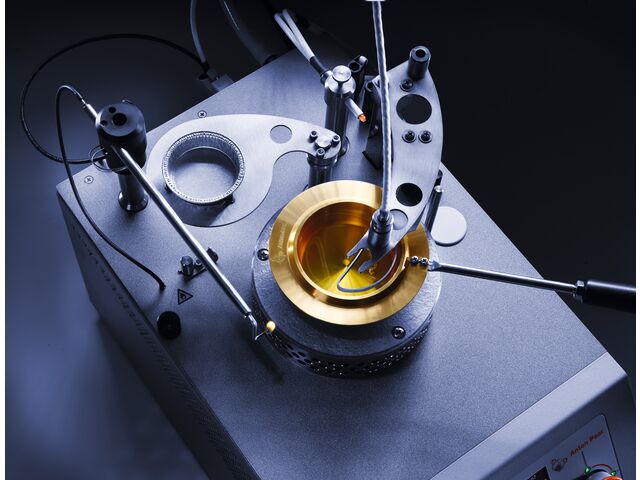

The automatic Cleveland Open-Cup (COC) measures and describes the properties of a sample in response to heat and a test flame under controlled conditions. The flash point measures the tendency to form a flammable mixture with air while the fire point indicates the tendency of sustained burning.
CLA 5 is suitable for flash and fire point applications of lubricants or bituminous material.

Cleveland open-cup flash point tester (ASTM D92, ISO 2592, and more)
Flash and fire point testing of lubricants and bitumen
Safety: automatically lights up the test flame, relights it, and suppresses the gas source at the end of the test

Benefits at a Glance
Memory for 1000 tests, 20 operators, 100 sample names, 21 test methods
Statistical analysis (Min, Max, Mean, Repeatability)
Measures flash points of silicone samples without any problems

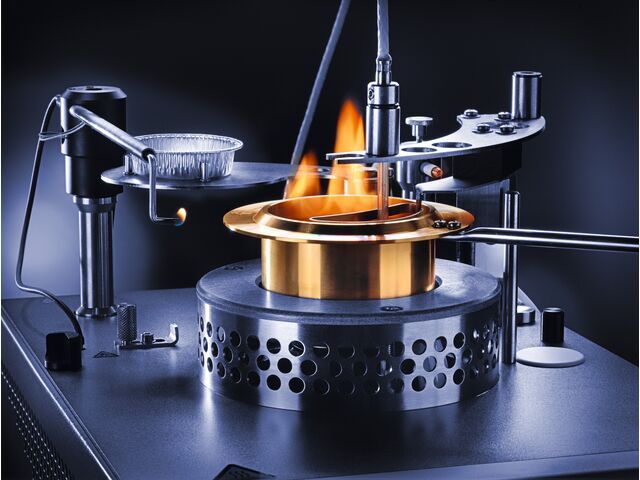

Automatically lights up the test flame, relights it by an electric igniter and suppresses the gas source at the end of the test

Technical features

Application range: up to 400°C (C/°F selectable) Ignition: Gas Heating: According to methods, programmable mode and preheating Flash and Fire Point Detection: Ionization Detector Sample temperature: Pt100 glass probe Pressure Barometric Correction: Automatic Correction
