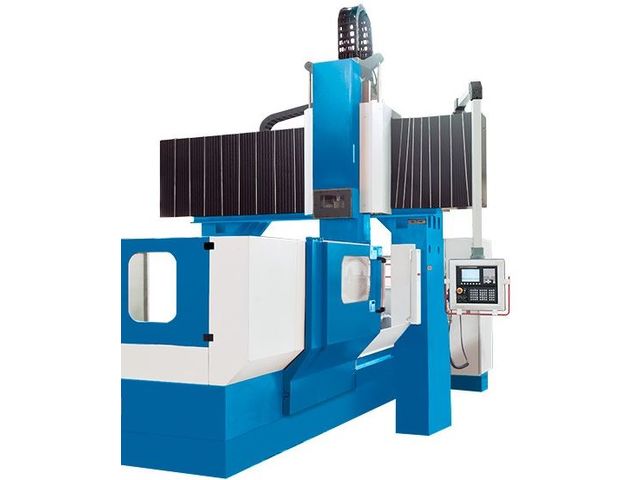

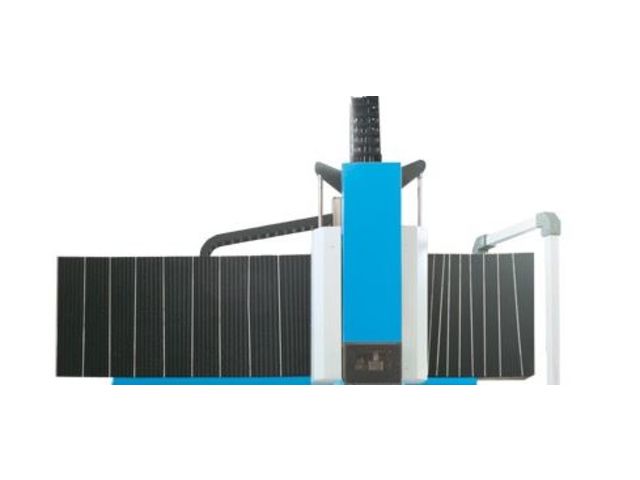

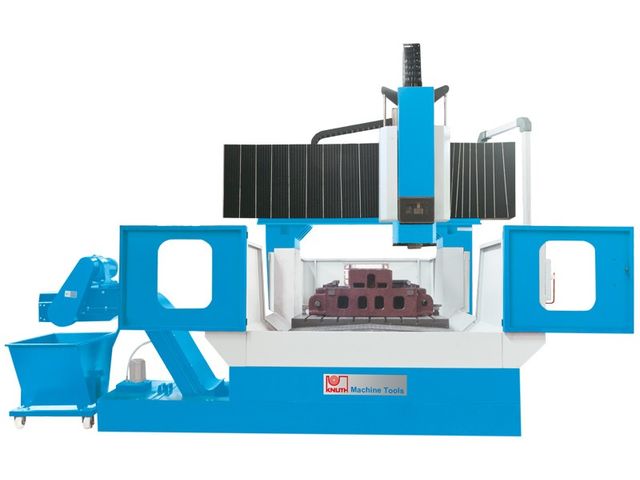

CNC Gantry-Type Machining Center - PBZ Heavy 6232 W

Machining centre

Vote

“ Power - Performance - Precision ”

Ask for a quote

Presentation

• Bed, columns and travel tracks form a solid frame structure for high rigidity under hard machining conditions and high table loads
• Triple linear guides support the table across its entire travel distance in the X axis and allow high table loads
• All axes feature preloaded ball screws, preloaded spindle nuts and powerful drive motors
• Quadruple linear guides of headstock on Z axis ensure maximum rigidity even with extra-long lay-outs
• The included hydraulic spindle gears allow a wide speed range and high torque
• Including weight balancing system for easy movement and precise Z axis positioning
• The main spindle features an oil cooler to ensure constantly balanced temperatures
• Quick tool changes via a tool-changer with dual-arm gripper
• Fanuc 0i MD control with Manual Guide for easy programming and maximum reliability
• Chip conveyors on both sides of the table with a capacity of 55 kg/min ensure quick chip removal from workspace; including chain-type chip conveyor
• Productivity and flexibility can be increased even further by using any of the optional accessories: NC – Rotary Table, 90° Angle Cutter (more accessessories upon request)
• Automatic central lubrication system
• The PBZ 6232 W with motorized W axis allows optimum manual positioning of the traverse during machining of different types of workpieces

Standard equipment : Fanuc 0i-MC control with Manual Guide 0i, electronic hand-wheel, automatic central lubrication, coolant system, spindle oil cooler, RS-232 interface, work lamp, safety guard, chip conveyor, warning beacon, foundation bolts, test certificate, operating tools, operator manual.

Technical features

Table dimensions : 6.000x2.800 mm Table load capacity (max.) : 32.000 kg T-slots, spacing : 200 mm T-slots, width : 28 mm Spindle axis-to-table surface distance : 0 - 1.200 mm Speed range : 50 - 6.000 rpm Spindle mount : BT 50 Motor rating main drive : 26 kW Main drive, continuous load : 22 kW Overall dimensions (length x width x height) : 15.500 x 6.400 x 6.800 mm
