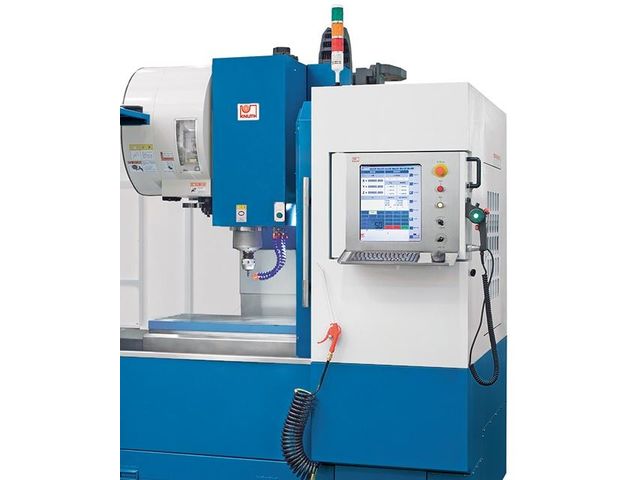

CNC Vertical Machining Center - X.mill 900 L SI

Machining centre

Vote

“ Precise and quick -for machining of complex and heavy parts ”

Ask for a quote

Presentation

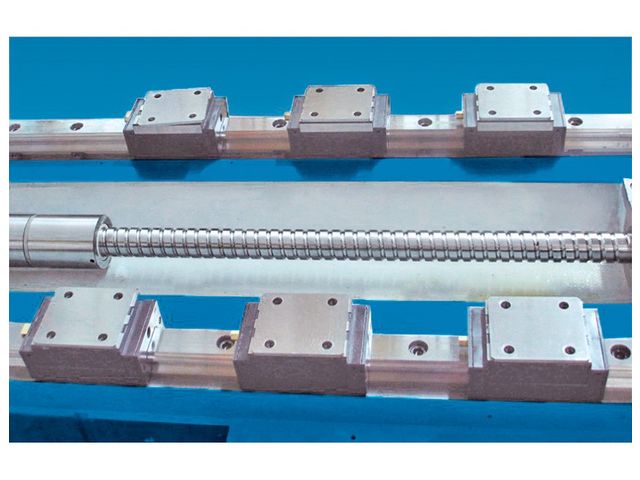

• Machine frame with linear guides in an extra-wide configuration, rigid construction for efficient machining.
• High-precision preloaded ball screws on all 3 axes.

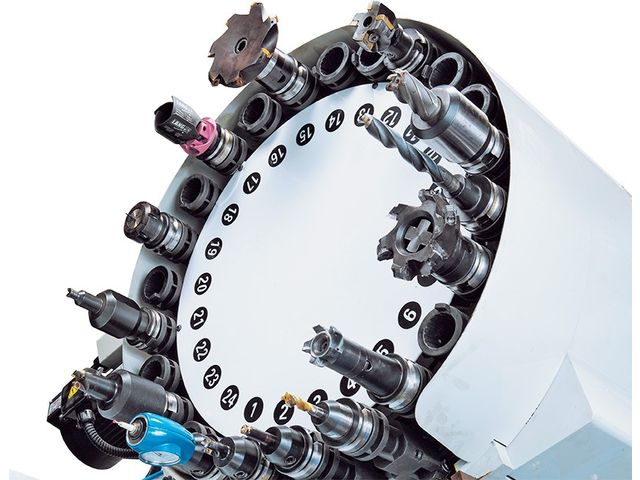

• Dual-arm 24-station tool changer for quick and precise tool changes.
• Enclosed work space ensures safe and contamination-free work.
• Very accessible work table for easy setup of clamping tools and workpieces.
• Powerful servo-drives ensure high feed dynamics.
• Effective coolant system ensures optimum use of tools and excellent chip removal.
• A multitude of options allow maximum customization to meet any requirements.

Standard equipment : Siemens 828 D control, 24-station tool changer with dual-arm, electronic hand-wheel, spiral chip conveyor, spindle oil cooler, closed work space, work lamp with program end, Ethernet, USB interface, climatic elextric box, automatic central lubrication, coolant system, chip flushing system plus spray gun for flushing, 12 bar, air gun, operating tools, operating manual and programming instructions

Technical features

Table dimensions : 950x550 mm Table load capacity : 500 kg Number of T-slots : 5 Pieces T-slots, width : 18 mm T-slots, spacing : 100 mm Spindle nose-to-table surface distance : 100 - 650 mm Throat : 632,5 mm Spindle speed : 8.000 rpm Spindle mount : BT 40 Number of tool stations : 24 Pieces
