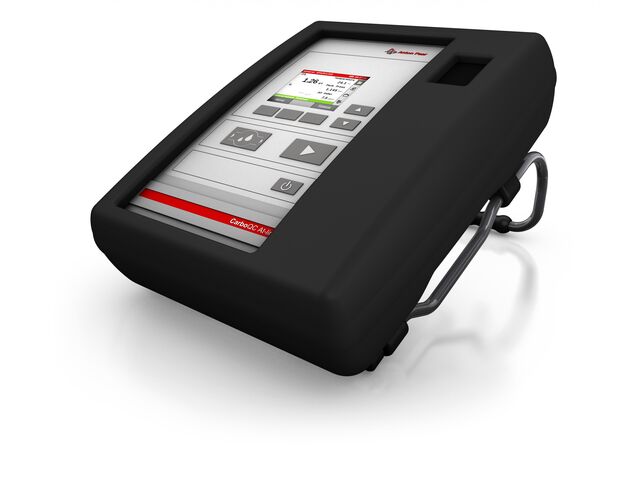

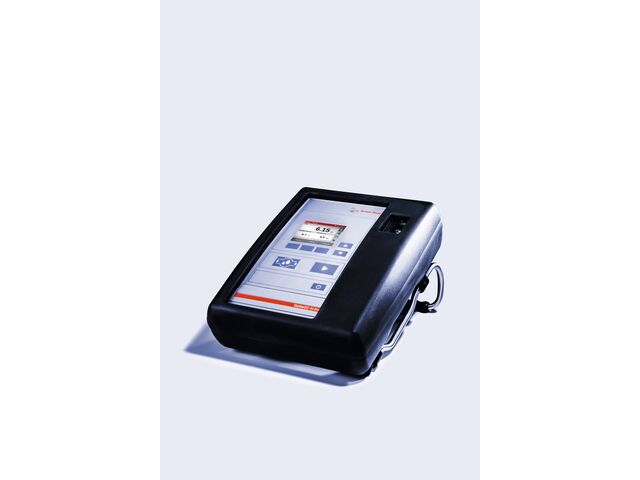

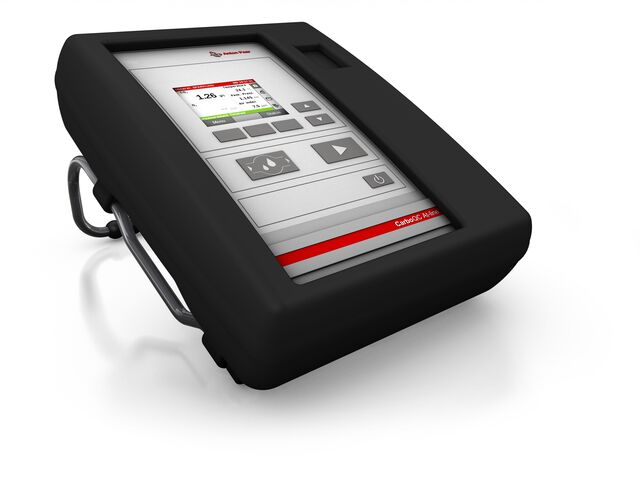

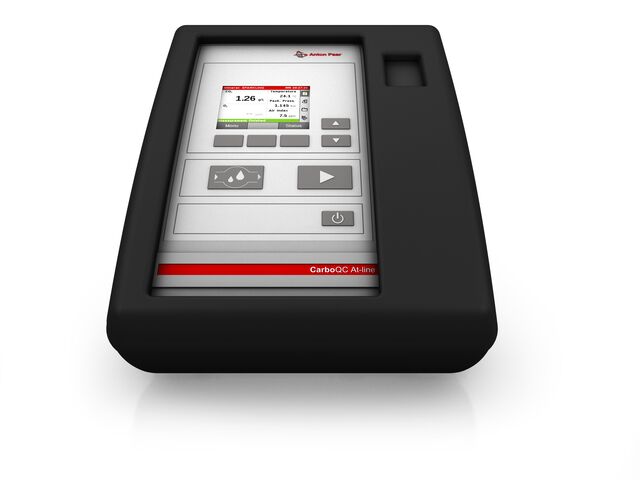

CO₂ Meter: CarboQC At-line

Gas analysis

“ Efficient and quick to finish CO2 results after only 55 seconds CO2 measurement based on the patented Multiple Volume Expansion method Intuitive user interface - easy handling in all surroundings Ready to go once out of the box Clear sample identification for full traceability of 500 measurement results Built-in support for the most precise results Data Logger function: enables continuous CO2 measurements from the line or tank FillingCheck™: automatically detects filling errors and generates a warning message System Check: guides the operator through recommended periodical checks Portable measurement Integrated rechargeable battery provides up to 10 hours at-line operation Fast and wireless Bluetooth interface for wireless printing USB interface for data transfer to a PC RFID interface for changing measurement settings quickly by reading RFID tags ”

Ask for a quote

CarboQC At-line is the portable CO2 meter for measurement directly from process lines, tanks, kegs and casks during production and bottling. For the utmost flexibility, the instrument’s new and robust design is small, compact and lightweight and therefore fully protected for harsh environments. It provides a battery life of up to ten hours. The integrated CO2 Data Logger function enables continuous measurements from the line or tank. CarboQC At-line is therefore ideal for checking the production process of beverages and verifying the CO2 results measured by process equipment.

Fully protected
Fully protected from harsh environments thanks to the robust and IP67 leakproof design
For the utmost flexibility, the instrument’s new design is small, compact and lightweight

Technical features

Temperature: -3°C to +40°C (27°F to 104°F), Accuracy: 0.2°C Pressure: 0 bar to 10 bar, absolute, (0 psi to 145 psi) Repeatability standard deviation: 0.04 g/l (0.02 vol) Digital resolution: 0.01 g/l Sample volume: approx. 150 ml Measurement time per sample: approx. 55 seconds Internal memory: 500 measurement results

Usage scope

Beverage
