Coil and spool dispenser : BOBI® range CABLE EQUIPEMENTS

Coil and spool dispenser : BOBI® range

Dynamic storage

Vote

Ask for a quote Receive Documentation Contact the supplier

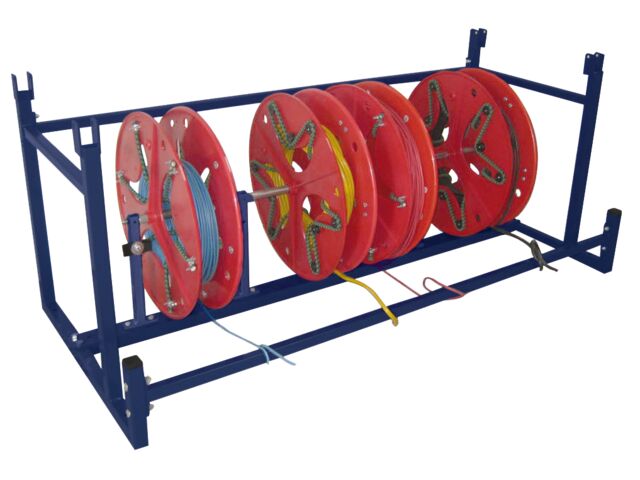

BOBI 300

For wire coils
- The BOBI 300 is supplied with 6 300mm Ø spools with straps, maximum width: 100 mm
- New breaking system on each spool
- Dimensions: W 1.200 x D 530 x H 510 mm
- Weight: 19,8 kg

Code E3090300M


BOBI 400

For cable coils
- The BOBI 400 is supplied with 4 400 mm Ø spools with straps, maximum width: 150 mm
- New breaking system on each spool
- Dimensions: W 1.200 x D 530 x H 510 mm
- Weight: 18,8 kg

Code E3090400M

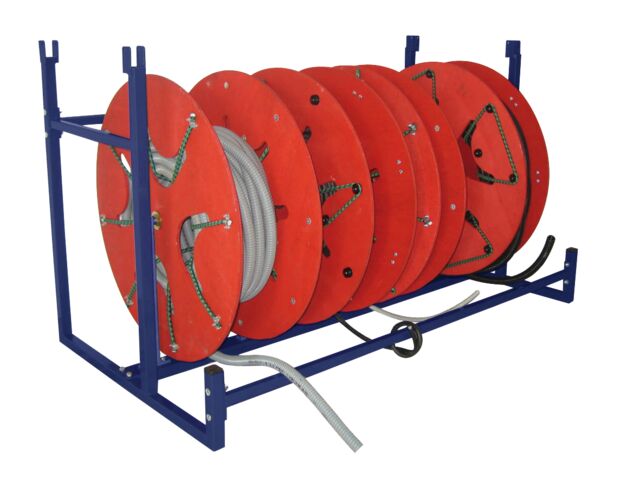

BOBI 600

For pipe coils
- The BOBI 600 is supplied with 4 600 mm Ø spools with straps
- Maximum width 180 mm
- Dimensions: W 1.200 x D 650 x H 710 mm
- Weight: 18,8 kg

Code E3090600M


ADJUSTABLE BOBI

For wire coils
- Upgradable system: 6 vertical bars screwed into the central bar according to the width of the spools
- 3 screeds per vertical bar: it is therefore possible to stack up up to 3 small spools
- Delivered with a shaft: Ø 17 mm, L 1.20 m (to be cut according to the width of the spools)
- For spools with a maximum diameter of 600 mm and a maximum weight of 30 kg
- Dimensions: W 1.200 x D 650 x H 710 mm

Code E3090000M


BOBI-COILS

For 4 cable coils and 12 wire coils
- Includes one BOBI 400 module and of two BOBI 300 modules
- Delivered with 16 spools with straps
- Dimensions: W 1.200 x D 530 x H 1.450 mm
- Weight: 58,4 kg

Code E3090COURM

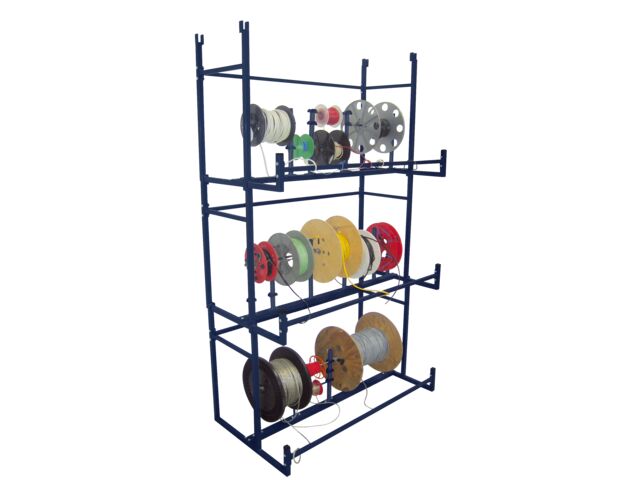

BOBI-SPOOLS

For spools up to 600 mm in diameter and up to 30 kg
- Composed of three modules ADJUSTABLE BOBI
- Delivered empty
- Dimensions: W 1.200 x D 530 x H 2.050 mm
- Weight: 51,9 kg

Code E3090BOBM


BOBI-MIXTE

For spools and coils
- Includes one ADJUSTABLE BOBI module, one BOBI 400 module and one BOBI 300 module
- Delivered with 10 spools with straps
- Dimensions: W 1.200 x D 530 x H 1.650 mm
- Weight: 55,9 kg

Code E3090MIXM


Optional wheels

4 pivoting reels of 100 mm diameter of which 2 have brakes
Weight: 2,2 kg
Height increased by 130 mm

Code E3090014


Measuring devices M3-D option

Removable. To nest in front of the reel to unroll.
For cable Ø max. 22 mm.
Weight: 1,3 kg

Code E3350009


Measuring devices M35-D option

Removable. To nest in front of the reel to unroll.
For cable Ø max. 35 mm.
Weight: 3,5 kg

Metal wheel: Code E3350369
Synthetic wheel: Code E3350379



Cable guide option

Must be ordered at the same time as the BOBI on which it’s installed.
Max. cable Ø (for each cable guide): 12mm 6 cable guides per row of BOBI 300 / BOBI COMBINED or 4 cable guides per row of BOBI 400 / BOBI 600

Code E3090015


Cutting plier option

For cables max. Ø 25 mm, attached with a chain

Code E3400006

BOBI® : Spools with straps

To transform a coil into a spool
- It solves the problem of tangled wires.
- The spool can be opened and a coil can be placed inside very quickly: there is no need to unwind and rewind the wire.
- The 2 flanges of the spool are connected by elastic straps, each one having anchoring points.
- This helps to perfectly maintain the inner diameter and width of the coil. The spool is therefore balanced correctly.
- In order to choose between the 3 models (300 mm, 400 mm and 600 mm), it is necessary to take into account the outer diameter of the coil as well as its width (maximum distance between flanges).
- Spools with straps are sold separately.
- They are also used with the QUAD® and MAXIQUAD and the BOBI® dispenser.
- They can also be adapted to the MINOCABLE and the ESCABOCABLE.
- PLANCKE invention. Patented model.
