Cold Bend Test CBT iiM AG measurement + engineering

Cold Bend Test CBT

Test stands

Vote

Ask for a quote Receive Documentation Contact the supplier

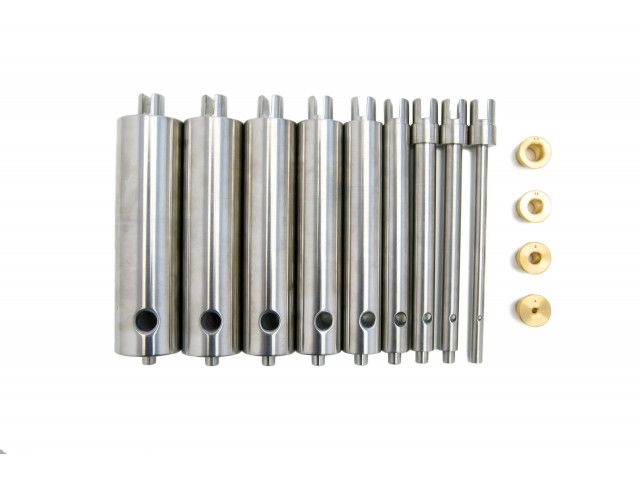

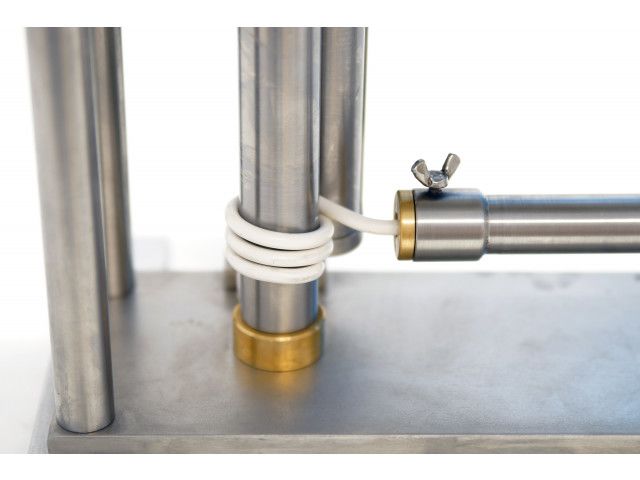

Device details: ■ Device and operation according to the standard IEC 60811-504 ■ The complete set offers various spindles and cable guides with many diameters: Winding spindles: 10, 14, 18, 22, 28, 30, 35, 40, 45, 50 mm outer diameter Cable Guides: 4, 7, 9, 11, 13 mm inner diameter ■ Very robust and solid construction ■ Winding spindles interlock easily and guides are easily fastened ■ Device suitable for positioning in cold chamber ■ Maneuver Ratio: 2/1: 2x Crank rotation = 1x spindle rotation ■ Spindle/Guide diameter ratio: 0.8x sample diameter

Size (width x length x height): 350 x 485 x 410 mm / 13.78 x 19.09 x 16.14 Inch Weight: Device: 21 kg / 46.3 lbs (Accessories: 14 kg / 30.8 lbs) Material: Stainless steel
Download the complete technical features
