Colour-coded PVC power and control cable | ÖLFLEX CLASSIC 100 450/750V 4G50 LAPP FRANCE

Colour-coded PVC power and control cable | ÖLFLEX CLASSIC 100 450/750V 4G50

Cables

Vote

Ask for a quote Receive Documentation Contact the supplier

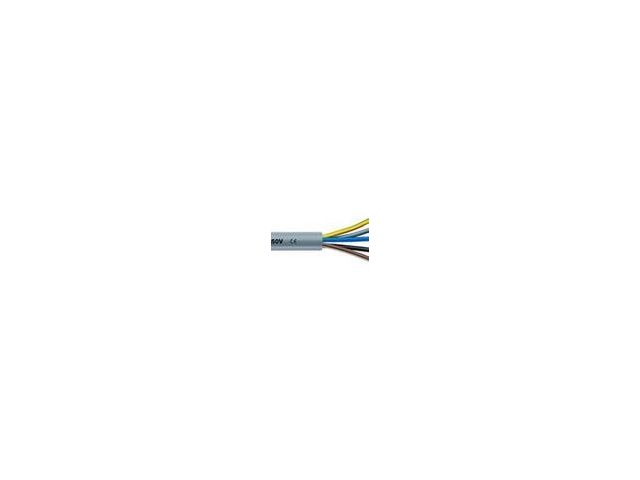

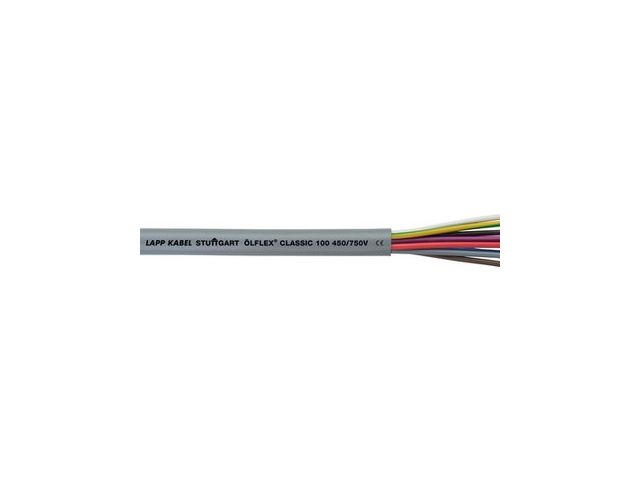

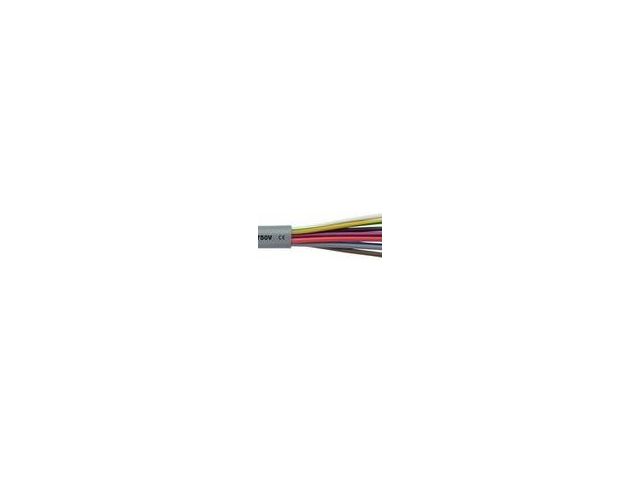

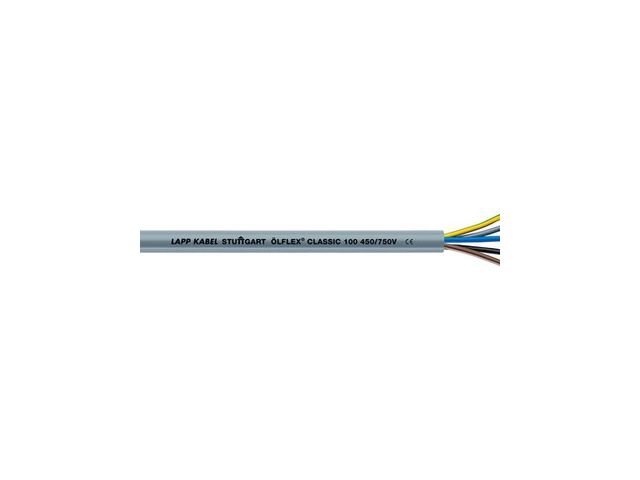

Colour-coded PVC power and control cable

ÖLFLEX® CLASSIC 100 - flexible PVC cable, colour coded, power and control cable for various applications, 450/750V, also for YSLY or YY

  • CPR: Article number choice under www.lappkabel.com/cpr
  • For nominal voltage U0/U: 300/500V and conductor cross-sections below 2,5mm² see ÖLFLEX® CLASSIC 100 300/500V.
Benefits
  • High electrical performance due to 4 kV test voltage
  • HIgh flexibility due to short-twisted conductor layers
Application range
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
    Power stations
  • Dry or damp rooms that are subject to medium mechanical loads
  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
Norm references / Approvals
  • Based on IEC 60227-5 and EN 50525-2-51
Product Make-up
  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • PVC outer sheath, grey (similar RAL 7001)

article number: 00101193
