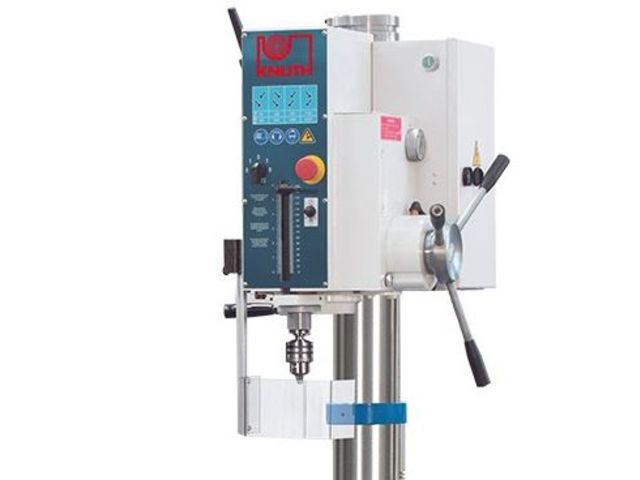

Column Drill Press - SBT 35 KNUTH

Column Drill Press - SBT 35

Column drill

Vote

“ Heavy-duty Gear Head Drill Press with automatic feed. ”
Ask for a quote Receive Documentation Contact the supplier

  • Very rigid construction with thick-walled column and heavy, secure machine foot
  • 8 speed steps for effective power transmission - no belt slippage
  • Easy rpm adjustment via two shift levers and 2-step main motor
  • Automatic depth-adjustable quill feed with 4 gear steps
  • Solid and durable rack-and-pinion drive made of C45 steel, plus adjustable drill head and table

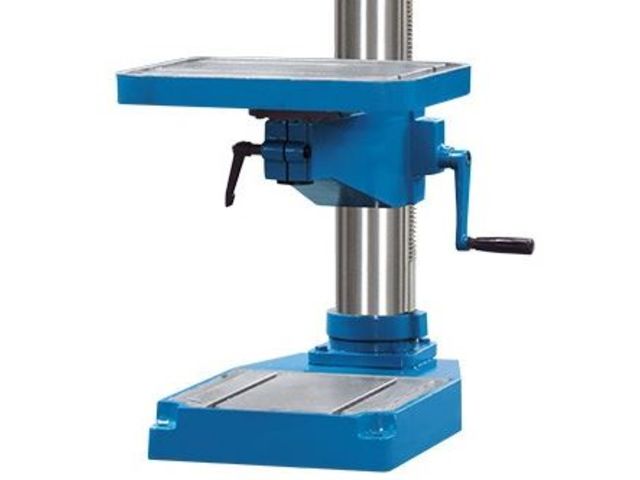

  • Large, heavy drill table, including T-slots, fine-ground surface
  • Tapping feature
Standard equipement :  drill chuck guard, drill chuck 13 mm, tool-holder bits, operating tools and operator manual.

Drilling capacity : 35 mm Table stroke : 510 mm Vertical head travel : 380 mm Table set up area : 500x400 mm Quill stroke : 150 mm Throat : 320 mm Spindle nose-to-table distance (max.) : 880 mm Spindle nose-to-foot distance : 1.215 mm Column diameter : 127 mm Spindle mount : MK 4
