Column-mounted dot peen marking machine e10-c153 & e10-c303 SIC MARKING

Column-mounted dot peen marking machine e10-c153 & e10-c303

Turnkey Assembly System

Vote

“ LED lighting of the marking area Speed and accuracy - quality and accuracy of guides ( 0.02 mm) - speed : up to 3000 parts per day - high performance sofware Robustness and reliability - Foundery base - Mechanic and stylus assembly designed for intensive use Integrated counter Easy and cost effective maintenance Electronic controller e8: - Fully programmable - Data Matrix marking - Angular and circular marking - Marking history and auto diagnostic functions - Standalone operation (no PC required) - Industrial membrane keyboard - Fully enclosed controller (IP40) - Large graphical screen Wide options range ”
Ask for a quote Receive Documentation Contact the supplier

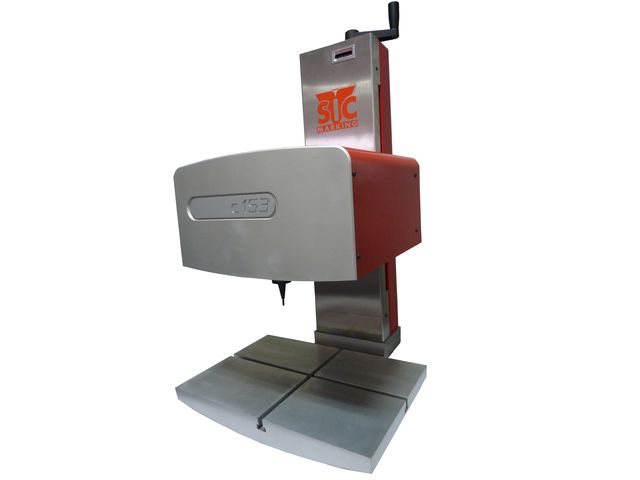

Among the range of benchtop marking machineS, the extreme accuracy and speed of the c153/c303 mounted unit are unmatched. Using a unique electromagnetic marking technology, the column mounted marking machine c153/c303 can adapt to various shapes and surface conditions, whether flat, concave, convex, circular, or raw. Capable of marking any material (including plastics and hardened steel up to 62HRC), it requires only one source of energy. Its integrated counter and the LED lighting make it an extremely accurate and an all-purpose marking machine.


The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.

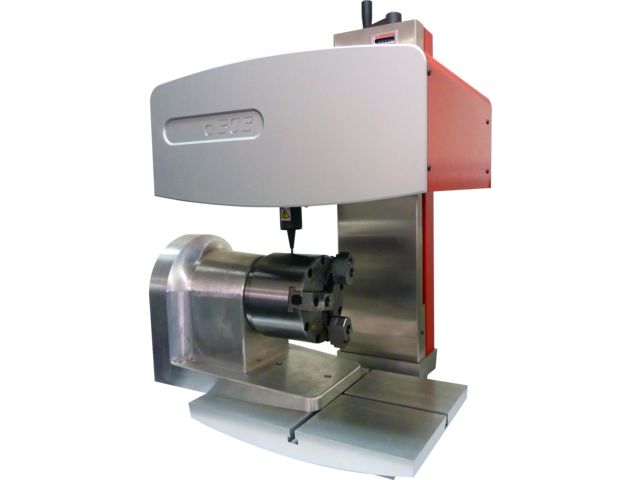

Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.
