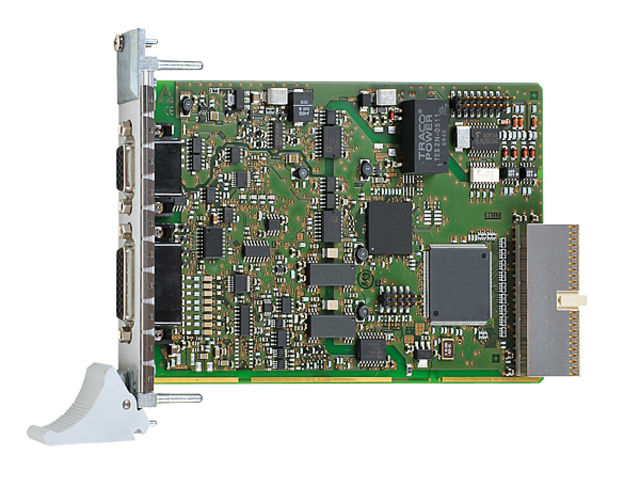

CompactPCI analog I/O board - CPCI-3120

Vote

Ask for a quote

Presentation

The CompactPCI analog I/O board CPCI-3120 has 16 SE/8 differential inputs, 16-bit, with a througput rate of 100 kHz. The 8 analog ouputs have a 14-bit resolution. All output lines are protected against short-circuits and equipped with EMI filters. Each output has its own ground line. The 24-bit timer can be used as cyclical counter or as watchdog. The board is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data etc.
64-bit drivers for Windows 8/7/Vista/XP and Linux as well as programming samples are included, real-time drivers for Windows and Linux are available on request.

Technical features

16/8 SE or 8/4 diff. inputs, 16-bit 8/4 analog outputs, 14-bit Optical isolation of the inputs and outputs, 500 V Automatic analog acquisition Output voltage after reset 0 V MTBF: 75867 hours at 45 °C Timer, Watchdog

Download the complete technical features

Usage scope

Chemical and industrial process control Industrial measurement and monitoring Acquisition of multichanel, sensor and pressure data and current measurement Factory Automation Laboratory equipment, instrumentation
