Conveyors | AquaPruf 7400

Stainless steel belt conveyor

Vote

Ask for a quote

Presentation

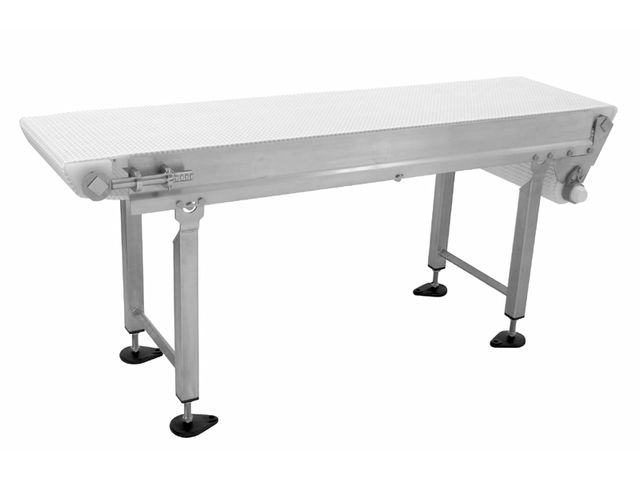

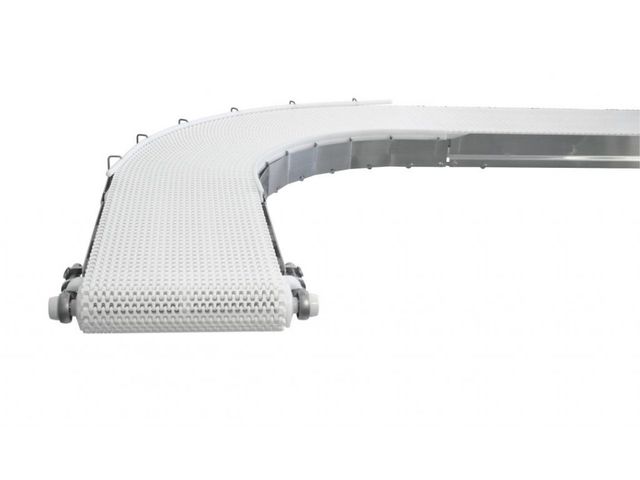

Straight, curved, and Z-frame models available.

Frame is designed with no horizontal surfaces for optimum cleaning. Conveyors over 10′ long consist of multiple sections which are bolted together.
Bearings are mounted in cast stainless steel housing for maximum performance in washdown environments.
Solid UHMW wear strips are easily lifted out of the frame without tools to minimize cleaning time.

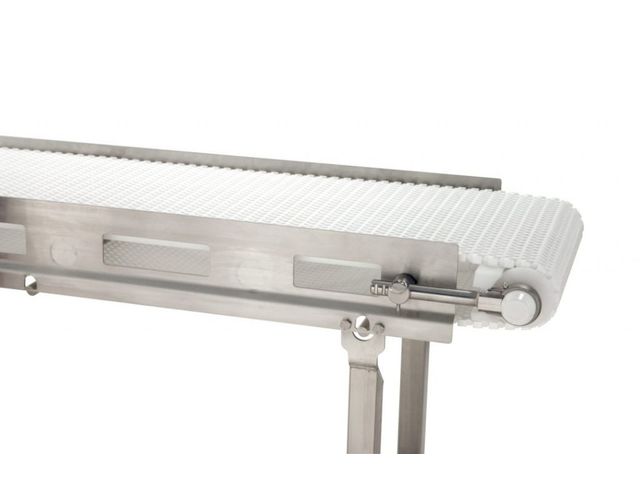

The tool-less tip up pulley allows conveyor end to be lifted easily for quick access to inside of conveyor for cleaning.
Conveyor is designed to withstand high pressure (100-1,500 psi) spray and chlorinated cleaning solutions.
The return belt supports are segmented plastic slide blocks and are easily removed without tools for effective cleaning.
Drive sprockets are located on a 1.5″ square stainless steel shaft without fasteners to provide optimum drive strength and cleanability
Frame cut-outs (optional) are available to allow spraying the inside of the conveyor without lifting the belt.
Nose bar idler ends (optional) are constructed of a machined UHMW bar to provide a 1.5″ diameter transfer.
The nose bar drive configuration (optional) allows the use of the nose bar transfer on each end of the conveyor for small product transfers.
Belt lifters (optional) raise the belt form the wear strips by simply pulling an external lever for fast access and effective cleaning.

Technical features

Load: 20 lbs/square-foot of belt Belt widths: 6″ to 60″ Lengths: 36″ to 999″ Belt speed: 233 ft/min maximum Wear strip material is UHMW Continuous TIG welded 304 stainless steel frame Stainless Steel Conveyors that Reduce Product Loss #4 Pollish on all outside surfaces Bearing material is 400 stainless steel Bearing lubricant is H1 type FDA lubricant
