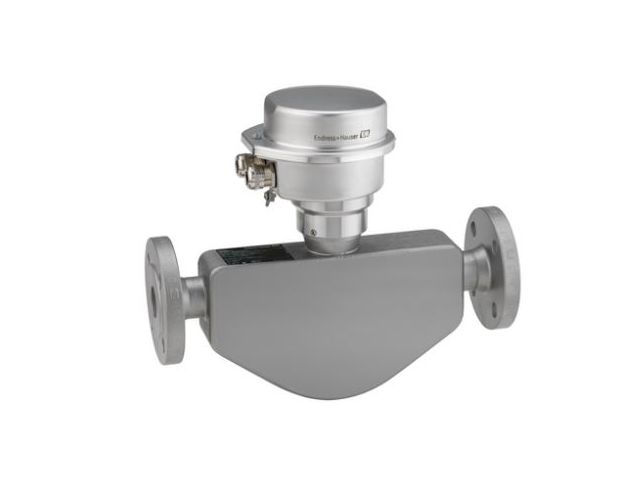

Coriolis flowmeter | Proline Promass E 100

Coriolis flow meter

Vote

“ - Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters - Fewer process measuring points – multivariable measurement (flow, density, temperature) - Space-saving installation – no in/outlet run needs - Space-saving transmitter – full functionality on the smallest footprint - Time-saving local operation without additional software and hardware – integrated web server - Integrated verification – Heartbeat Technology ”

Ask for a quote

Presentation

The flowmeter with minimized total cost of ownership and an ultra-compact transmitter

The robust Promass E has a long standing reputation as cost-efficient solution accurately measuring liquids and gases in a wide range of standard applications.

Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promass E 100 the preferred choice for skid builders, equipment manufacturers and system integrators.

Heartbeat Technology ensures compliance and process safety at all times.

Technical features

Measuring Principle : Coriolis Nominal diameter range : DN 8 to 80 (⅜ to 3'') Wetted materials : Measuring tube: 1.4539 (904L) / Connection: 1.4404 (316/316L) Measuring range : 0 to 180 000 kg/h (0 to 6600 lb/min) Max. process pressure : PN 100, Class 600, 63K Medium temperature range : –40 to +150 °C (–40 to +302°F) Sensor housing material : 1.4301 (304), corrosion resistant Outputs : 4‐20 mA HART (active) / Pulse/frequency/switch output (passive) Digital communication : HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET Power supply : DC 20 to 30 V

Download the complete technical features

Usage scope

Measuring principle operates independently of physical fluid properties such as viscosity or density Accurate measurement of liquids and gases for a wide range of standard applications Compact dual-tube sensor
