Coriolis flowmeter | Proline Promass F 100

Vote

“ - Highest process safety – immune to fluctuating and harsh environments - Fewer process measuring points – multivariable measurement (flow, density, temperature) - Space-saving installation – no in/outlet run needs - Space-saving transmitter – full functionality on smallest footprint - Time-saving local operation without additional software and hardware – integrated web server - Integrated verification – Heartbeat Technology ”

Ask for a quote

Presentation

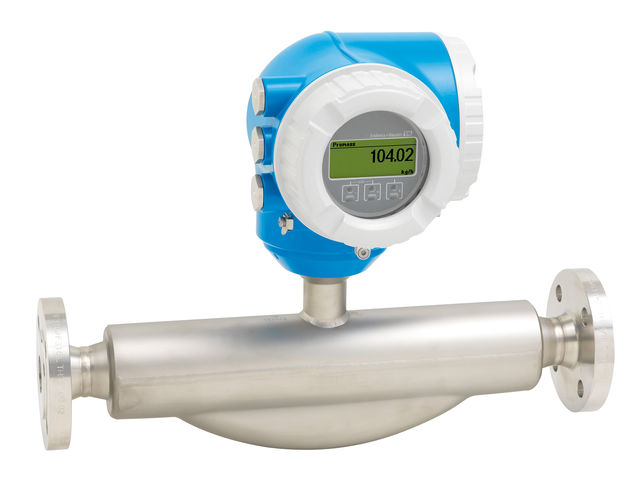

The flowmeter with premium accuracy, robustness and an ultra-compact transmitter

Promass F has a long standing reputation as a highly accurate device under varying process conditions. It is suited for broadest range of applications. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint.

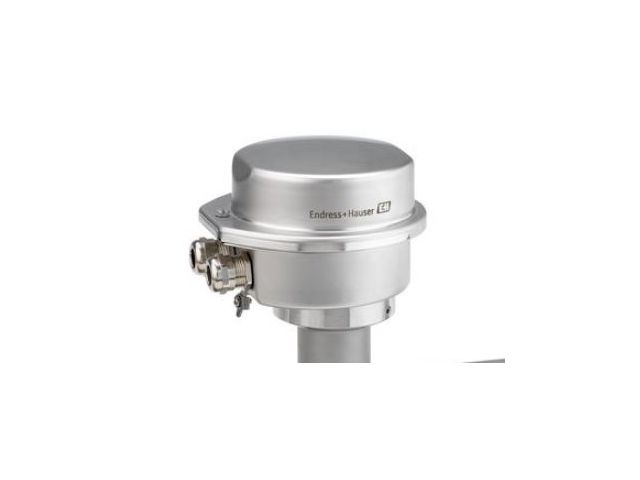

Promass F 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers. Available with an extra-compact stainless steel hygienic housing it can be placed even into the most compact rigs.

Technical features

Measuring Principle : Coriolis Nominal diameter range : DN 8 to 250 (⅜ to 10'') Measured variables : Mass flow, density, temperature, volume flow, corrected volume, flow, reference density, concentration Measuring range : 0 to 2 200 000 kg/h (0 to 80 840 lb/min) Max. process pressure : PN 100, Class 600, 63K Degree of protection : Standard: IP66/67, type 4X enclosure / Option: IP69 Outputs : 4‐20 mA HART (active) / Pulse/frequency/switch output (passive) Input : None Digital communication : HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET Power supply : DC 20 to 30 V

Download the complete technical features

Usage scope

Measuring principle operates independently of physical fluid properties such as viscosity or density Highest measurement performance for liquids and gases under varying, demanding process conditions
