Cyclomix™ MICRO Airspray 2K Electronic Mixing & Dosing System

Paint pumps and paint application products

Vote

“ CYCLOMIX™ Micro PH metering system version is also available for acid catalysts coatings (pH 0.5) ”

Ask for a quote

Presentation

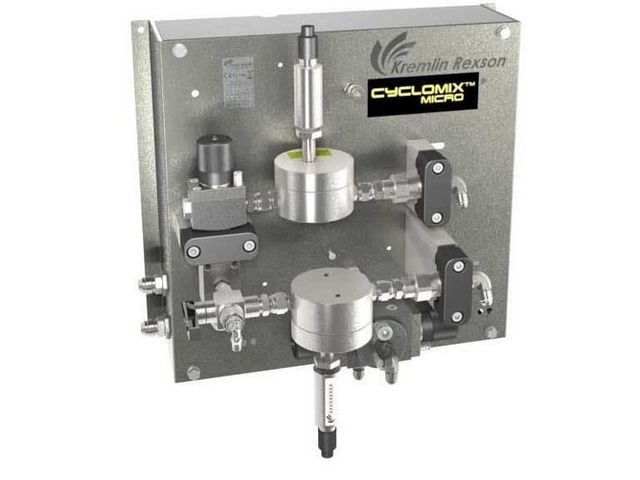

The Plural Component Electronic Mixing & Dosing System allows the user to dose, mix & continuously deliver two-component paints or adhesives.

Fresh material on demand
Elimination of manual mixing errors
Significant material savings

Performance

Consistently precise mixed material due to the unique static mixer design and direct injection - inject mix technology
Unsurpassed +/- 1% mixing accuracy
Highly accurate performance due to 2 precise flow meters

Productivity

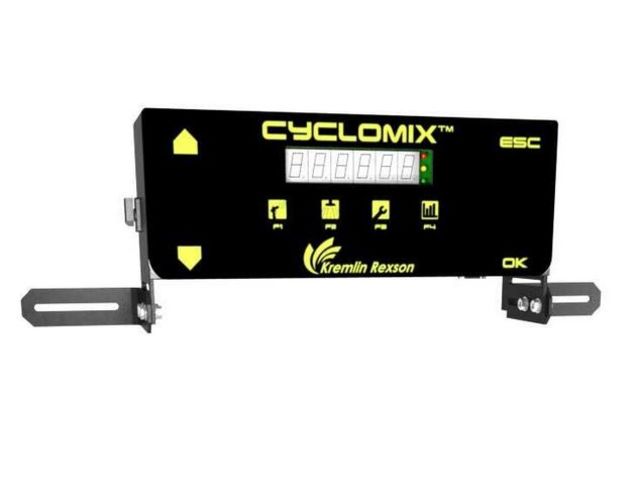

Intuitive use - Touch-screen control
Minimum material and solvent waste due to automatic flushing and material generation
The operator can control the system while in the spray booth using the glass kit option

Sustainability

Consistent product quality = Less rework cost
Lower cost of ownership
Reduces hazardous waste

Technical features

Electrical Power : 115/230 - 75 V - W Maximum Fluid Pressure: 2-200 (29-2900) bar (psi) Recommended Fluid Pressure : 2-175 (29-2537) bar (psi) Number of Products : 1-3 base-catalyst-solvent Maximum Temperature : 50 (122) °C (°F) Air Inlet: F1/4"BSP Fluid Inlet : M1/2"JIC Fluid Outlet: M1/2"JIC Number of Mixed Products : 3 (2K)

Download the complete technical features
