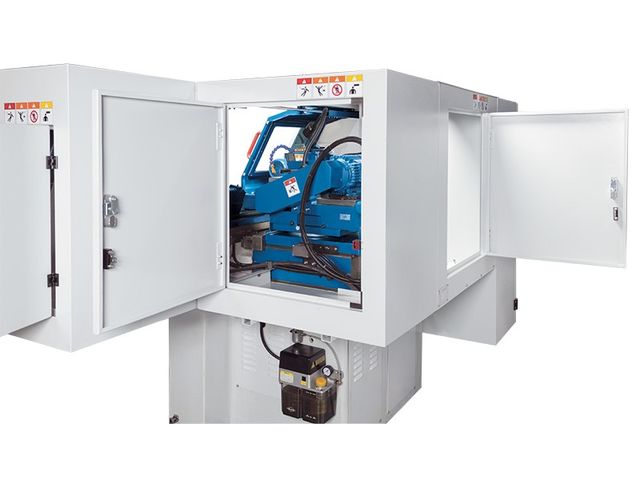

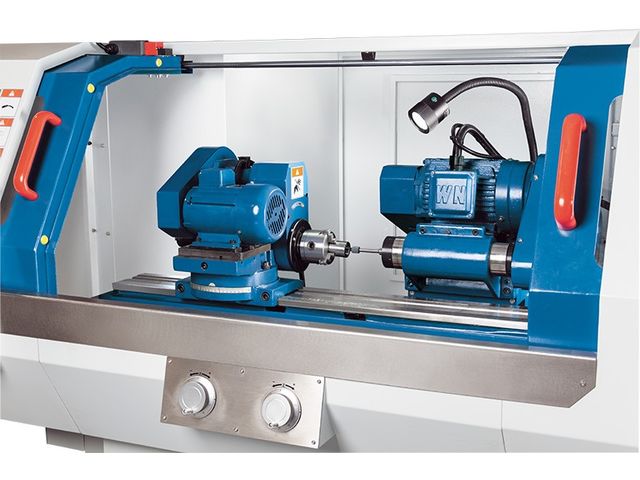

Cylindrical Grinding Machine - RSM 500 CNC

Cylindrical grinding machine

Vote

“ High-Precision Cylindrical Grinding Machine for Inside and Outside Machining. ”

Ask for a quote

Presentation

Superior machining quality and high flexibility for small batch productions
These proven, solid machine frames with wide V-guides and boxways ensure low vibrations for optimum work results
Servo-driven axes run on precision preloaded ball screws
Electronic hand-wheels for grinding headstock movement
High-precision hydrodynamic bearings of the grinding spindle ensure optimum grinding results
GPlus 450 control: Optimized for comfortable operation of Cylindrical Grinders - made to meet the most demanding grinding requirements
Graphic support for grinding cycles makes this machine especially easy to use.

Standard équipement : GPlus 450 control, internal grinding equipment, grind wheel remover, 3-jaw chuck Ø 80 mm, balancing station, center point, totally enclosed work space, coolant system, automatic central lubrication, leveling feet, grinding wheel flange, work lamp, operator manual, operating manual and programming instructions.

Technical features

Center height : 100 mm Workpiece length (max.) : 520 mm Grinding length : 500 mm Workpiece weight (max.) : 10 kg Grinding diameter : 150 mm Inside grinding diameter : 10 - 40 mm Inside grinding depth : 50 mm Stroke of top slide (max.) : 65 mm Table swivel range (max.) : 7° / 7° R / L Travel X-axis : 115 mm
