Universal Grinder - Multi-Grind KNUTH

Universal Grinder - Multi-Grind

Cylindrical grinding machine

Vote

Ask for a quote Receive Documentation Contact the supplier

Ideal for tool and die construction, mechanical production, design processes. laboratories and training.

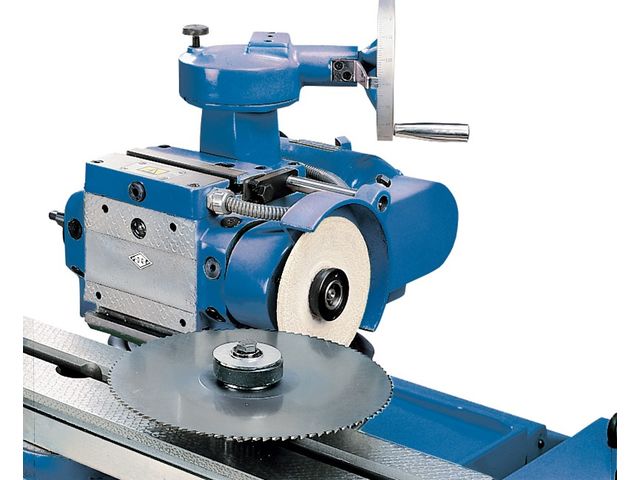

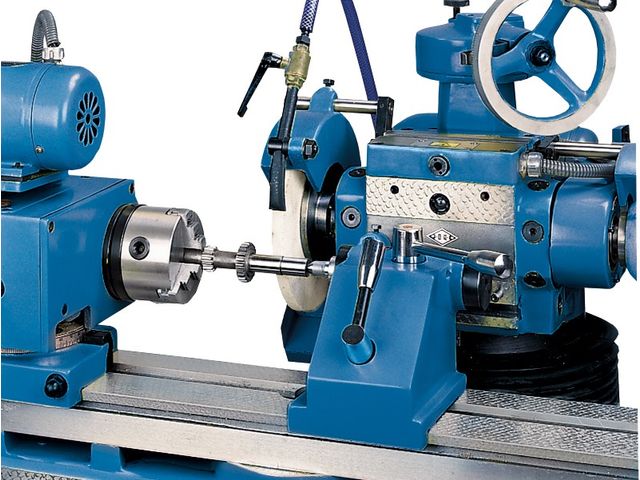

The functionality of the Multi-Grind ranges from external and internal cylindrical grinding to taper grinding. The Multi-Grind also allows easy tool grinding (sharpening of cutters, reamers and turning tools) and is suitable for light surface grinding job.

Three-Point Bearing The custom three-point bearing of the grinding spindle ensures minimum temperature effects and consistent grinding quality.

Feed Drives Hydraulic table feed (longitudinal) with automatic change of direction. An additional manually operated longitudinal feed with hydraulic support allows feed speeds up to 7 m/min.

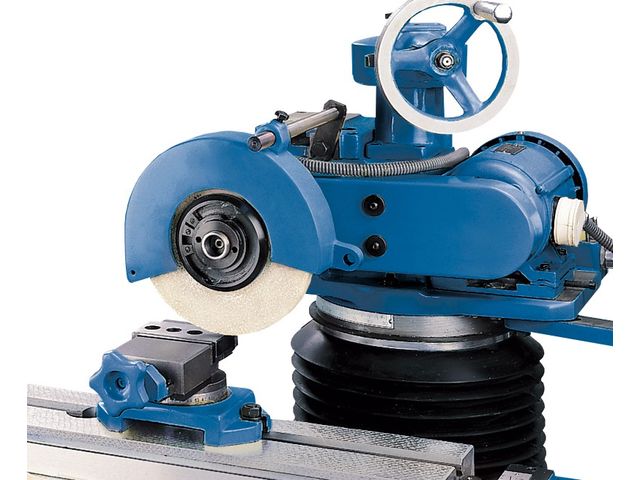

Grinding Headstock Special grinding headstock design allows simultaneous setup of 2 different grinding wheels. The grinding headstock can be moved in transverse direction and also vertically; and it can be rotated around the vertical axis.

Speeds The headstock operates at 3 different speeds (110, 200, 300 min-1), which are set through an easy to operate gear shift lever.

Additional Features... - central lubrication system - sturdy construction - the KNUTH Multi-Grind body is made of solid cast-iron and weight 1300 kg; minimizes vibration effects - electrical components are mounted easily accessible in a control cabinet.

Standard equipement : coolant system, exhaust vacuum, tool mount / indexing head MT 4, internal grinding unit including 2 die grinders, 4 grinding wheels, 3-jaw chuck Ø 100 mm, left tailstock, right tailstock MT 2, center point, half center points, balancing station, spindle extension, vise for surface grinding (3-D angle adjustment), spring stop, 5 drivers, various splash guards, grinding wheel guard (2x), automatic central lubrication, Bedienungsanleitung and test certificate.

Grinding diameter : 200 mm Workpiece length (max.) : 500 mm Outside grinding measure, maximum : Ø 5-50 x 400 mm Inside grinding measures, optimal : Ø 10-50 x 75 mm Tool grinding measure : 200x500 mm Workpiece width surface grinding : 50 mm Workpiece weight (max.) : 10 kg Table swivel range (max.) : +45° / -30° Workpiece length surface grinding : 200 mm Grinding length : 200 mm
