DATAPAQ Kiln Tracker Temperature Profiler

Temperature recorder

Vote

Ask for a quote

Presentation

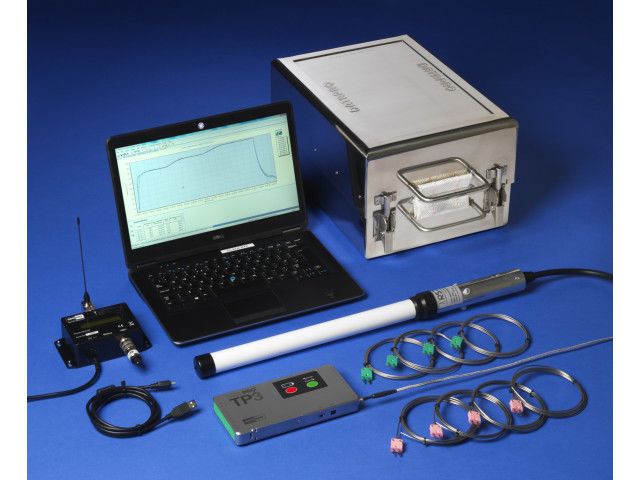

Tunnel Kiln Tracker temperature profiling systems are comprised of a data logger, a protective thermal barrier, software, and thermocouples. Using a DATAPAQ system, you can obtain reliable and accurate in-process temperature profiling in tunnel kilns used to fire brick and roof tiles, tableware, sanitaryware, tile, refractory and more.
• Reliable profiling system for high temperatures and long process durations typical in the ceramics industry
• Powerful and user-friendly DATAPAQ Insight analysis software
• Highly accurate and programmable 10 or 20 channel data loggers storing up to 3.6 million data points

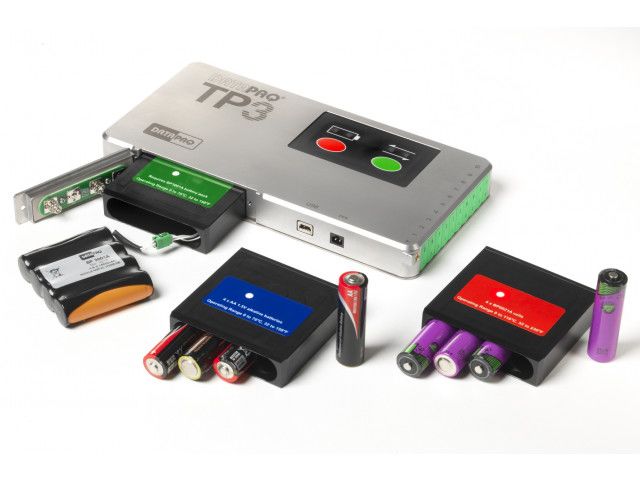

• DATAPAQ TP3 data logger in a stainless-steel casing
• Radio Telemetry option for real-time monitoring

Technical features

Temperature range: -100°C to 1370°C (-148°F to 2498°F) Connectivity: USB or Bluetooth as standard Number of channels: 10 or 20 Memory capacity: Up to 3.6 million datapoints Sampling interval: 0.1 sec to 50 min Max. operating temperature: Up to 110°C Logger accuracy: ±0,3°C (0.5°F) Battery: Lithium, NiMH rechargeable, Alkaline x 4AA Thermocouple type: K (other types available, combination of different types possible) Thermal insulation – duration at temperature: Up to 35 hours at 400°C (750 °F), up to 250 hours at 150°C (300°F)

Download the complete technical features
