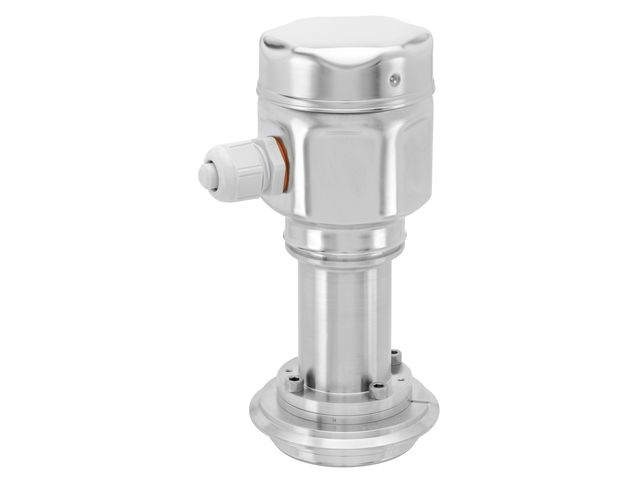

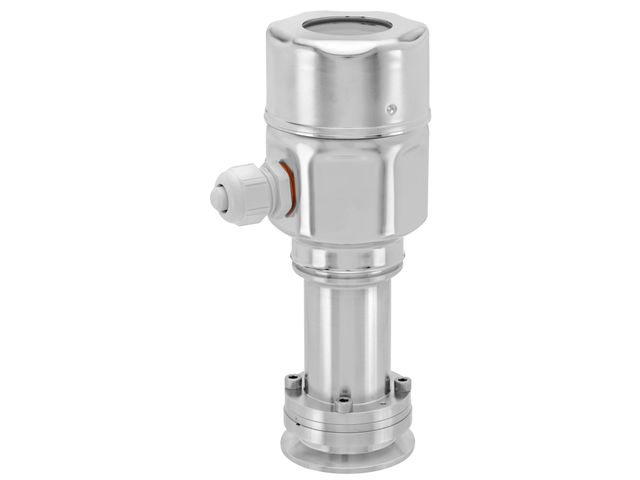

Digital pressure transmitter | Cerabar PMC51

Other pressure sensors

Vote

“ - Best fit for vacuum applications and applications with corrosive and abrasive media - Process safety through membrane breakage detection - Overload-resistant high purity ceramic sensor (99.9% Al2O3) - Condensation resistant also for hygienic applications - Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus - Process pressure up to SIL2, certified to IEC 61508 and IEC 61511 - Available with mounted manifolds: always fit, always tested for leaks ”

Ask for a quote

Presentation

Digital pressure transmitter with oil-free ceramic sensor for measurement in gases or liquid.

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection.

Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

Technical features

Measuring Principle: Absolute and gauge pressure Process connections: Threads, flanges or hygienic connections Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi) Accuracy: ±0.1%, International explosion protection certificates, SIL, hygienic approvals, marine approvals Communication: 4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus

Download the complete technical features
