Electronic differential pressure | Deltabar FMD72 Endress+Hauser France

Electronic differential pressure | Deltabar FMD72

Pressure transmitter

Vote

“ Eliminates traditional mechanical issues resulting in greater process availability and reliability ”
Go to the supplier’s website Receive Documentation Ask for a quote

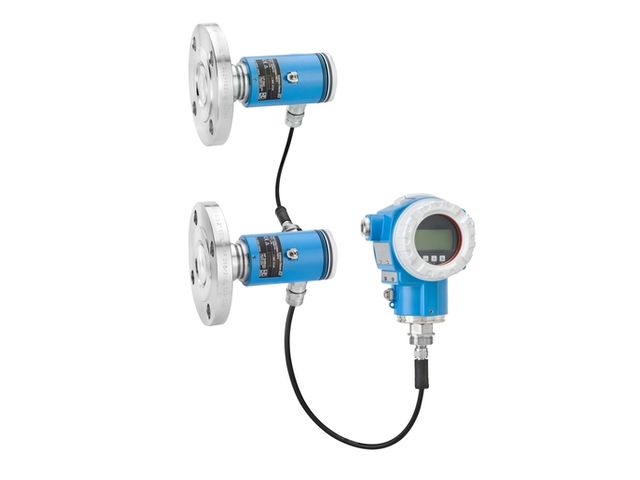

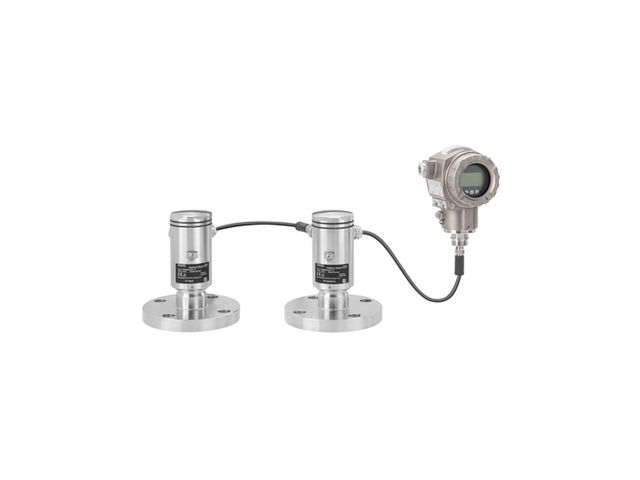

Electronic differential pressure system utilizing two metal sensor modules and one transmitter.

The electronic dp Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure.

The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.

Accuracy 0.075% of individual sensor, Process temperature –40...+125°C (–40 ... +257°F) Pressure measuring range 400 mbar...10 bar (6 psi...150 psi) Process pressure absolute / max. overpressure limit 160 bar (2400 psi) Main wetted parts 316L, Alloy C Certificates / Approvals ATEX, FM, CSA, IECEx, NEPSI, INMETRO
Download the complete technical features
