Inspect, store, manage data & make soundrecordings for spectrum analyses!

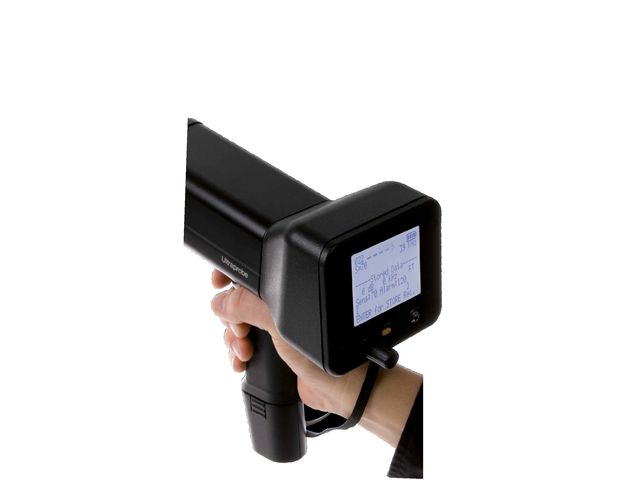

The Ultraprobe® 10,000 brings ultrasound inspection technology to a whole new level. With this one system, inspectors can perform condition analysis, record sounds, store and manage data.
Use for ALL ultrasound applications & programs
-
Setup bearing data collection routes, analyze & create lubrication routes
-

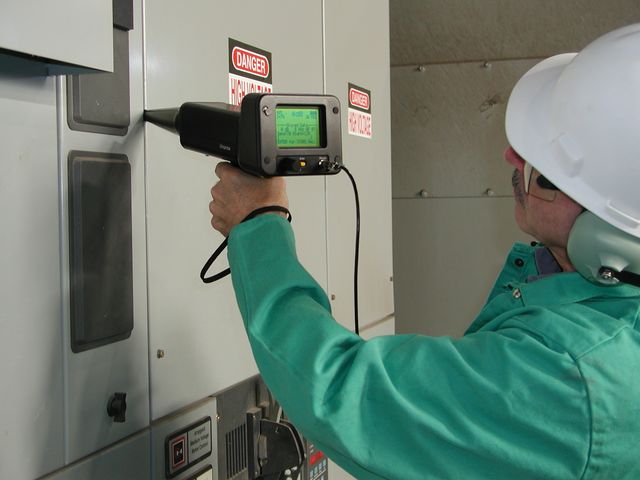

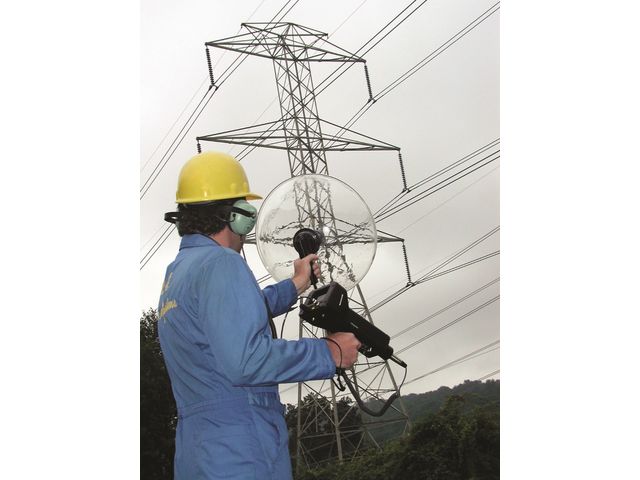

Inspect electrical systems for faults, analyze on the spot & report
-
Inspect for faulty steam traps
-
Find your leaks & report cost per leak with DMS reporting
Why Choose this instrument?
-
Enables all the possibilities to inspect, report & analyze with ultrasound
-
Accurate & repeatable digital data
-
Frequency adjust possibility 20-100 kHz
-
On-board sound recording
-
Ideally for troubleshooting, analyses & data collection programs
-
Comes with licence free data management (DMS) & Spectrum analyses software to manage & report asset condition
On board data logging utilizing Ultratrend DMS™ providing:
-
Manage routes
-
Up & download via USB connection
-
Multiple data views
-
History tables/spread sheets
-
Trend charts
-
Export database & report documents to Excel
On board sound recording utilizing Spectralyser™ software providing:
-
Analyze soundfiles in FFT & Time series
-
Create analyses reports
-
Overlay historic recordings for comparisons
-
Diagnose electrical faults
-
Bearing fault calculator for defect confirmation
The Ultraprobe® 10,000 simplifies sound recording with user-friendly Spin and Click™ technology
The Ultraprobe® 10,000 features onboard Sound Recording with a push of a button. You’ll record a sound sample directly into the instrument and link it to one of 400 record files stored in the Ultraprobe!
Test the way you want with:
-
Specialized application screens
-
Adjustable on/off features
-
Connection to external devices
-
Flexible reporting options
This instrument combines troubleshooting with data collection & analyses into an every day maintenance asset!
All you need to run your factory !
