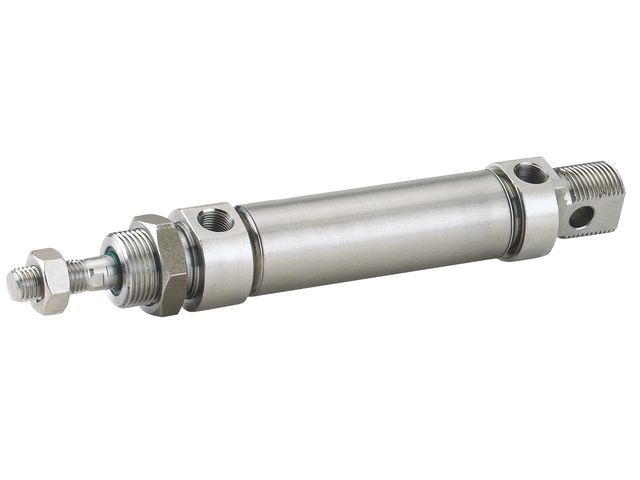

Double acting pneumatic cylinders in stainless steel ISO 6432 - Series AU

Double effect pneumatic cylinder

Vote

“ ✔ AISI 304 and 316 stainless steel ✔ According to ISO 6432 ”

Ask for a quote

Presentation

The AU series cylinders, marketed by SENGA, are made of stainless steel, with mounting dimensions according to the ISO 6432 standard. The AU series is divided into 3 bores: 16, 20 and 25 mm.

Recommended for applications using lubricated and non-lubricated filtered air, these cylinders are designed to be used in an environment where the temperature is between 0°C and +80°C (with dry air -35°C) and from 0°C to +150°C with VITON seals (dry air -10°C).

These cylinders consist of a tube, a rod, rod and fixing nuts in stainless steel, a rod and piston seal in polyurethane (VITON on request), a guide bush in sintered bronze, a front and rear head in stainless steel, a head seal, a piston in brass and dampers in aluminium alloy.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: lubricated and non-lubricated filtered air Working temperature: between 0 °C and +80 °C - (with dry air -35°C) and between 0 °C and +150 °C (with VITON seals) Operating pressure: between 1 bar and 10 bar Materials: aluminium - aluminium alloy; stainless steel; brass; polyurethane Single and double acting
