Vérins pneumatiques simple et double effet en acier inoxydable ISO 15552 - Série AX

Single and double acting pneumatic cylinders in stainless steel ISO 15552 - AX series SENGA sas

Single and double acting pneumatic cylinders in stainless steel ISO 15552 - AX series

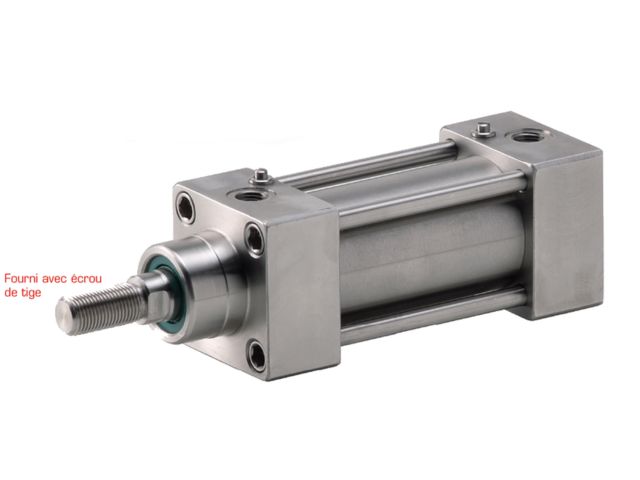

Double effect pneumatic cylinder

Vote

“ ✔ According to ISO 15552 ✔ Stainless steel ”

Ask for a quote

Presentation

AX single and double acting pneumatic cylinders, manufactured in stainless steel, are recommended to ensure the correct operation of machines using filtered, lubricated or unlubricated compressed air. They have extruded tubing and external tie rods, with mounting dimensions to ISO 15552.

Available in 9 bores: diameters 32, 40, 50, 63, 80, 100, 125, 160, 200 mm, AX pneumatic cylinders can also be supplied in the "through rod" version. The basic unit is separate from the accessories, except for the one with "central trunnion" mounting.

Used in many fields such as industry, industrial pneumatics, industrial automation, etc., these pneumatic cylinders operate at a pressure of 1 to 10 bar and have a minimum stroke of 5 mm and a maximum stroke of 1000 mm in double acting mode.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: filtered compressed air, lubricated or not Guide spindle: self-lubricated sintered bronze bearing. Stroke tolerance: +/- 1.5 mm Minimum stroke: 5 mm - Maximum stroke: 1000 mm double acting ISO 15552 Ambient temperature: between 0°C and +80°C (with dry air -20°C) with standard seals Ambient temperature: between 0°C and +150°C (with dry air -10°C) with VITON seals Operating pressure: between 1 bar and 10 bar Diameters: between 32 mm and 200 mm - (Ø32, 40, 50, 63, 80, 100, 125, 160, 200) Materials: stainless steel - AISI 316 (stem); stainless steel - AISI 304 (tube and extruded profile); - Seal: Polyurethane + NBR (Viton on request in non-magnetic) - Heads: stainless steel AISI 304 - Tie rods and nuts: from Ø 32 to 100, stainless steel Simple et double effet
