Double-ended shear beam load cell DSL – From 5 to 100 t PRECIA MOLEN

Double-ended shear beam load cell DSL – From 5 to 100 t

Weight sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

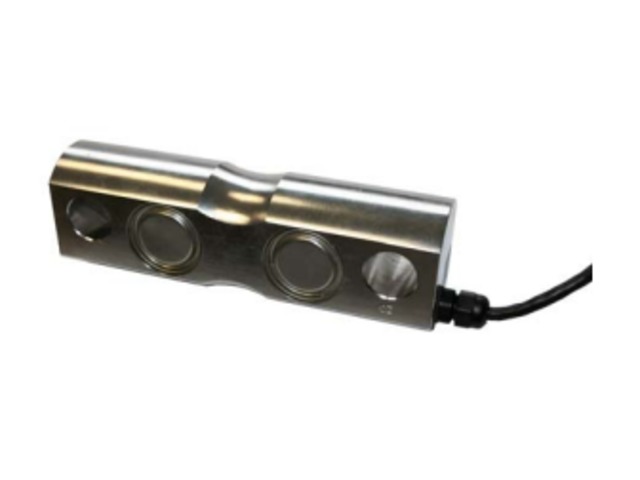

The DSL load cell is manufactured in stainless steel and is hermetically sealed to IP 68.

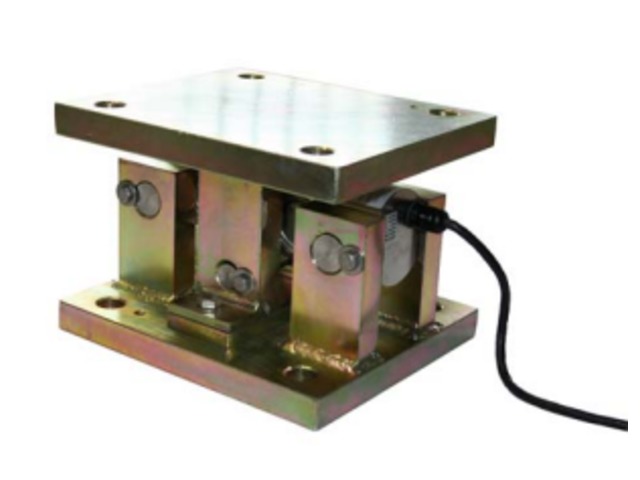

The characteristics of the double-ended shear beam load cell, together with its “Silo Load Mount” mounting arrangement, ensure it is not influenced by the lateral forces associated with vessels with agitators.
The load mount allows thermal expansion and includes an anti-lifting device.
The mount also features a locking device that enables it to be installed without the load cell fitted eliminating the risk of mechanical or electrical damage to the load cell during vessel installation.

APPLICATION

Weighing of silos, hoppers and vessels of medium and high capacity.
Especially suitable to weigh vessels that are agitated or subject to major thermal forces.

Download the complete technical features
