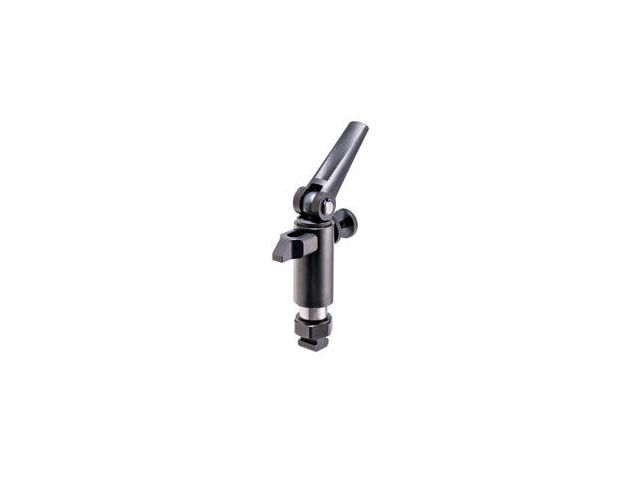

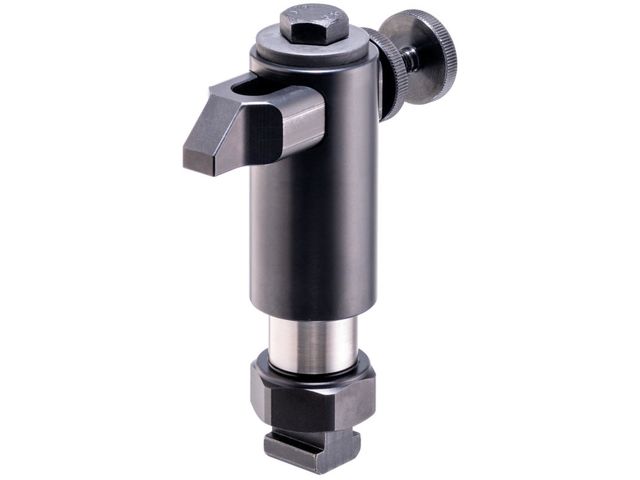

Down-Thrust Clampsmoveable, size 40 - EH 23310 HALDER FRANCE SAS

Down-Thrust Clampsmoveable, size 40 - EH 23310

Positioners and Tightening components

Vote

Ask for a quote Receive Documentation Contact the supplier

The moveable downthrust clamps are used, amongst other things, when swivel movements are not possible because of the workpiece.

The clamps provide the following advantages:

  • Easier and quicker workpiece change by moving the clamping claws forwards or backwards.

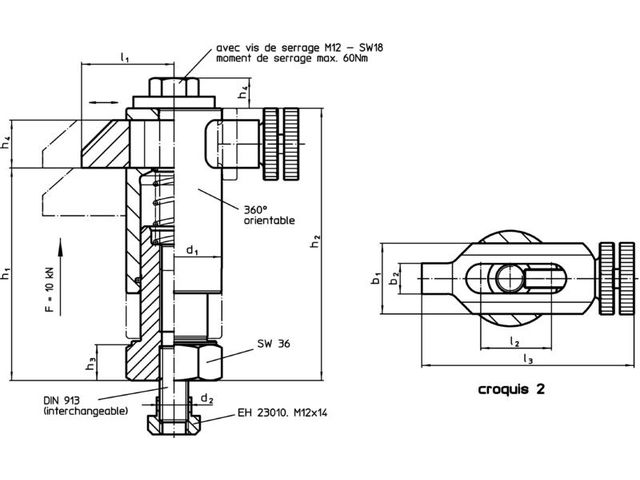

  • The clamping range in horizontal direction is between l1 min. and l1 max..
  • To change the workpiece, the clamping claw can be pushed back from l1 max. by dimension l2.
  • Rapid manual clamping by means of the clamping screw, the adjustable clamping lever, or the double eccentric clamping lever.
  • The use of positioning ring 23310.0350 allows the clamping position to be fixed. Here h1 min. increases by at least 7 mm (stroke minus 7 mm).
  • Compact design, therefore less space requirement when clamping.
  • Easily adjustable even to large clamping heights, using the height adjusting cylinders.

Material : Case-hardened steel, case-hardened, blackened and ground
Download the complete technical features
