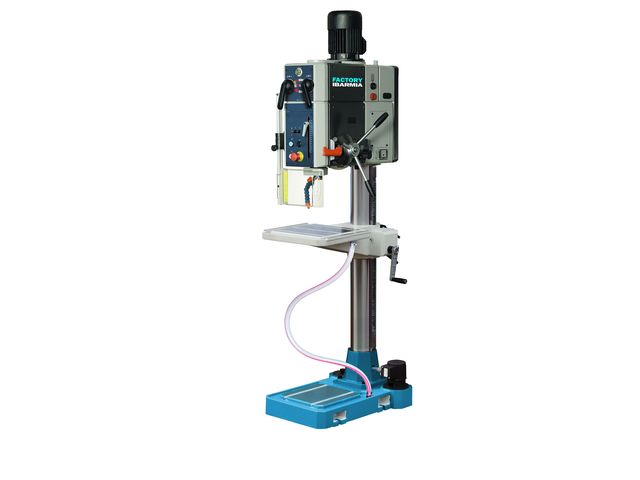

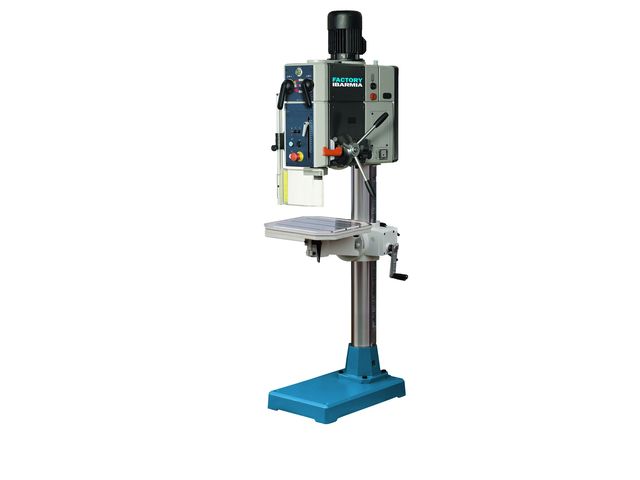

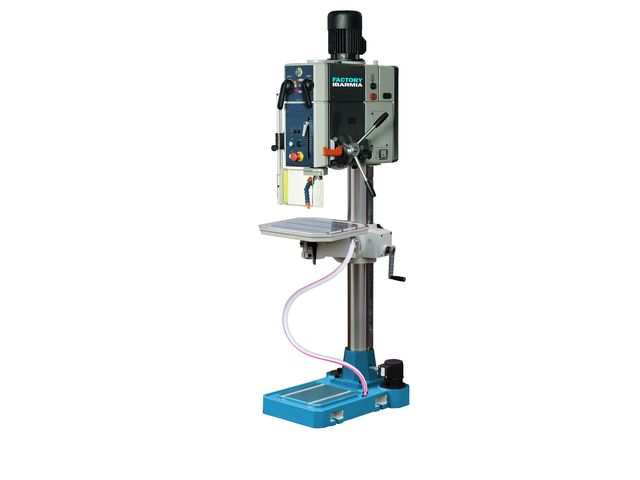

Drilling machine IBARMIA Factory IXA-40 ERLO GROUP

Drilling machine IBARMIA Factory IXA-40

Column drill

Vote

“ Excellent quality-price relationship supported by the company IBARMIA that is the world leader in manufacture of drilling and tapping machines since 1961. ”
Ask for a quote Receive Documentation Contact the supplier

STANDARD EQUIPMENT
Depth scale and adjustable depth stop
Automatic tool ejector
Low voltage electric equipment
Thermomagnetic switch
Emergency STOP push button
Spindle reversing switch
Electrical equipment integrated on machine's head
Safety drill guard with microswitch
Table with "T" slots
"CE mark

TECHNICAL CHARACTERISTICS:   Maximum drilling capacity on 60kg steel                                        Ø mm 40 Maximum drilling capacity on 200HB. Cast iron                            Ø mm 44 Maximum tapping capacity on 60 kg. Stell                                          mm M 30 Maximum tapping capacity on 200 HB. Cast iron                             mm M 32 Morse Taper MT                                                                                        Nr. 4 Drilling depth 150 Nr. and automatic feed range                                                      (mm/rev)                                  (3) 0,10-0,20-0,30 Feed Automatic Motor power                                                                                                CV 3 Transmission  Gear box Nr. Of speeds 9 Speed range with 2 speed motor 1500/3000 rpm 50hz 3ph           rpm 132-194-277-319-466-666-883-1296-1852 Table dimensiones (W x L)                                                                    mm 400 x 420 Column diameter                                                                                     mm 125 Distance from spindle centre to column face                                    mm 300 Distance spindle-table                                                                           mm Min.90 /Max.890 Distance spindle-base                                                                          mm 1.250 Net weight                                                                                                   Kg 400 Gross weight with packing                                                                      Kg 450 Packing dimensions (length x width x height)                                   m3 1,52
