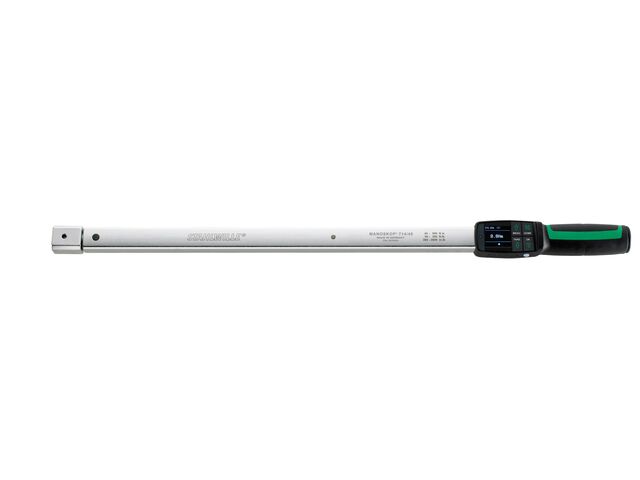

Electromechanical angle-controlled torque wrench

Clamping and tightening

Vote

Ask for a quote

Presentation

4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)

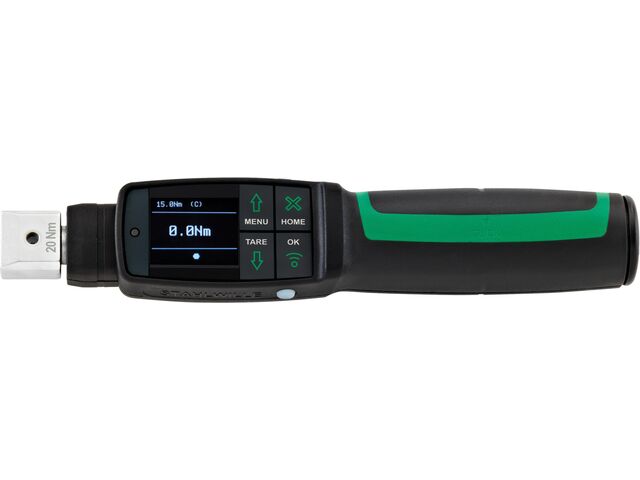

High-definition colour display with additional side-mounted indicator lamps
Freely configurable menu structure
Optionally: Li-ion battery No 7195-2 and charger No 7160
3 function modes: cut-out, peak hold (indicating mode with peak value) and track (indicating mode with current value)
Micro USB interface
Bayonet connection for battery compartment
QuickRelease safety lock change system for insert tools
Angle-controlled measurement without a reference arm
Data storage (≤2500 tightening jobs)
As many as 200 joints can be programmed in up to 25 preset sequences.
Different tolerance limits can be set for each joint
Acoustic and visual assessment of the joint
Rapid, accurate setting via keypad
The automatic keypad lock prevents inadvertent changes
Overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
Automatic notification of the next calibration date, either by the number of joints or the time interval
Fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
Units of measure: N·m, ft·lb, in·lb.
Tightening torque is automatically corrected if a deviating extension is entered
Immediately reusable after release
Clockwise and anticlockwise tightening - it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
Tactile and acoustic trigger signal.
Torque and angle are simultaneously visible
All readings are independent of the point of application of force (with sizes 1, 2 and 4)
Safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
2 certificates (torque, angle)
In sturdy plastic case (size 40-100 in steel case)
Design patent, patent
Supplied with SENSOMASTER Basic software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
Display resolution, angle 0.1°
Display deviation value, angle ±1%, ±1 digit
Display resolution, torque ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m
Display deviation value, torque ±2%, ±1 digit

Technical features

Code : 96500920 Setting/display resolution : 1,0/0,1 N·m; 1,0/0,1 ft·lb; 10/1,0 in·lb Scale Range : 15-150 ft·lb Weight g with box : 1896 Scale Range : 20-200 N·m Fine scale Scale Division : 0,5 N·m Size : 20 Scale Range : 180-1800 in·lb Scale Range : 10 N·m Scale Division : 2,5 ft·lb
