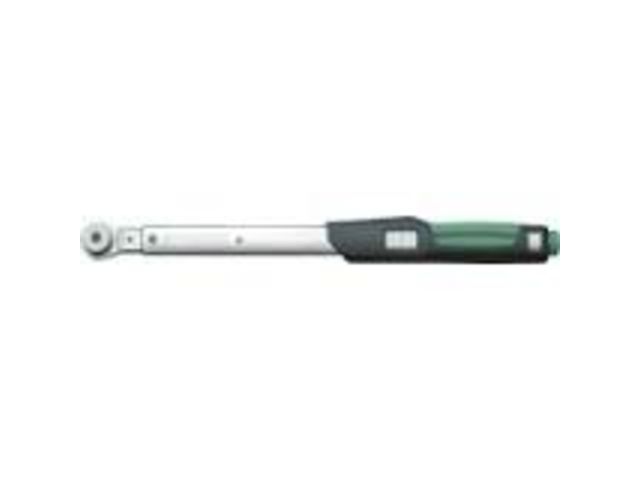

Mechanical torque wrench STAHLWILLE

Mechanical torque wrench

Clamping and tightening

Vote

Ask for a quote Receive Documentation Contact the supplier

  • Click-type
  • Mount for interchangeable insert tools
  • QuickRelease safety lock
  • Fast, accurate setting thanks to QuickSelect quick-action adjuster
  • Dual stop signal
  • Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales
  • The measuring element is only under load while force is being applied, no need for manual reset to zero
  • Can be applied for either clockwise or anticlockwise tightening by turning the inserts over

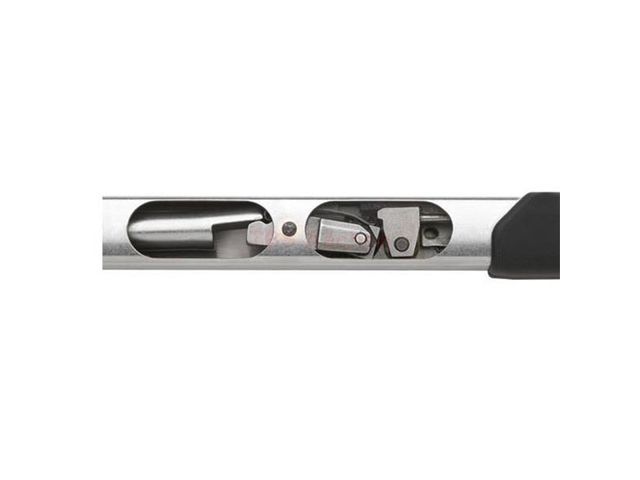

  • Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
  • Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
  • Calibration using perfectControl calibrating unit
  • No 7794 or calibration system No 7706.
  • Adjustment without disassembly.
  • With certificate
  • Registered design
  • Display deviation value ± 3%

Code : 50181020 Size : 20 Scale Range : 40-200 N·m Scale Range : 30-150 ft·lb Scale Division : 10 N·m Scale Division : 5 ft·lb Fine scale Scale Division : 1 N·m b mm : 28 h mm : 23 Weight g : 1264

Drop your rating on Mechanical torque wrench

Your answer to the rating from -

OTHER PRODUCTS CLAMPING AND TIGHTENING FROM STAHLWILLE

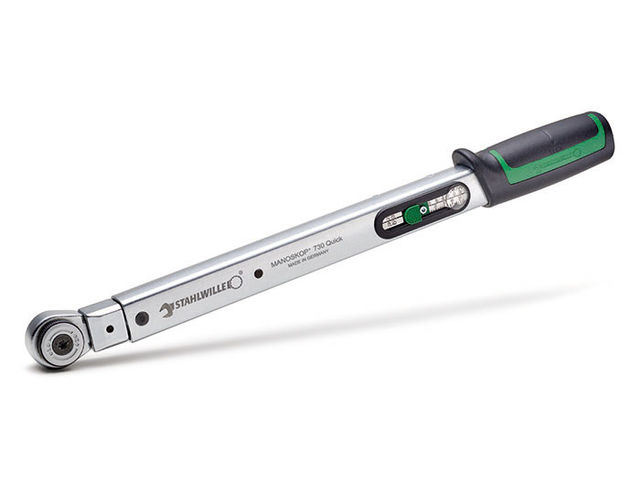

Basic wrenches with tool carrier for insert tools - 730 Quick
