Application Electronic pressure sensors with radio transmission will be used to monitor hydraulic clamping fixtures, if
• hard wired connections are not possible or too expensive.
• the pressure has to be measured in hard-toreach points or has to be adjusted frequently.
• the pressure has to be measured continuously in several places at the same time.
• the pressure has to be checked during start up and maintenance with minimum installation costs. In general, these are moving or rotating systems
Typical applications are:
• Automatic manufacturing systems
• Transfer lines
• Assembly lines
• Rotary indexing fixtures

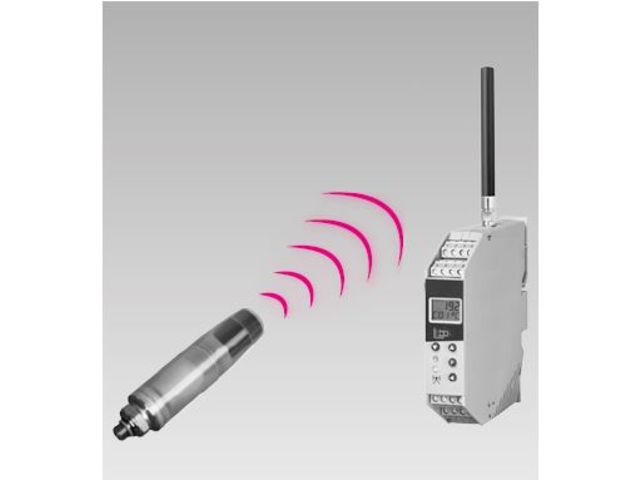

• Rotary indexing tables Up to 16 pressure sensors can be individually configured and monitored at a stationary receiver unit with antenna.
Advantages
● Wireless pressure measurement
● Stationary and mobile use
● Measurement at moving or in hard-to-reach points

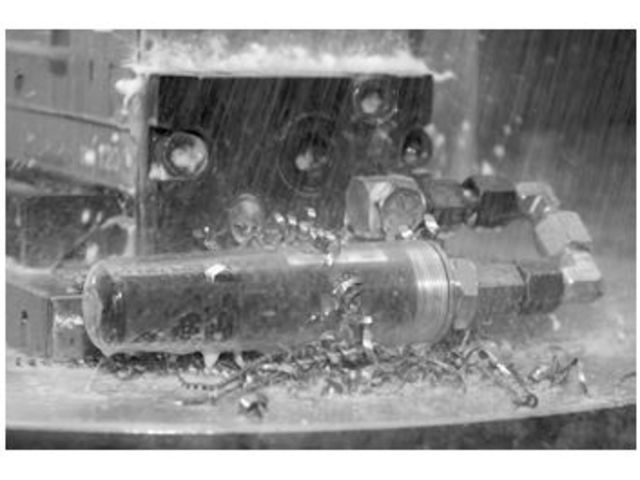

● Insensitive to swarf
● Code class IP 67
● Temporary pressure measurement during start up and maintenance
● Reduction of installation costs
● Up to 16 pressure sensors per receiver
● Up to 300 m free-field range
● Interference-free data transfer
● Long-lasting high capacity lithium battery
● Monitoring of battery condition
● Receiver unit with keyboard and LCD display
● Setup program for laptop and PC available as accessory
