MAX. WORKING HEIGHT: 6,5 m
COMPACT: it measures only 78x128 cm
IT WEIGHT only 680Kg
MAXIMUM CAPACITY: 200kg (1 person)
MANEUVERABLE: Turning radius= 0
COMFORTABLE: practical and safe access to the platform
STANDARD COLORING: grey and orange. Customizable coloring upon request
DOOR LOCK: it avoids the accidental opening of the basket
INCLINOMETER: anti-tilt system
DETECTORS: 3 acoustic and light presence indicators.
ADDITIONAL REMOTE CONTROL: it allows the machine's translation during the loading phase on ramps
EMERGENCY DESCENT

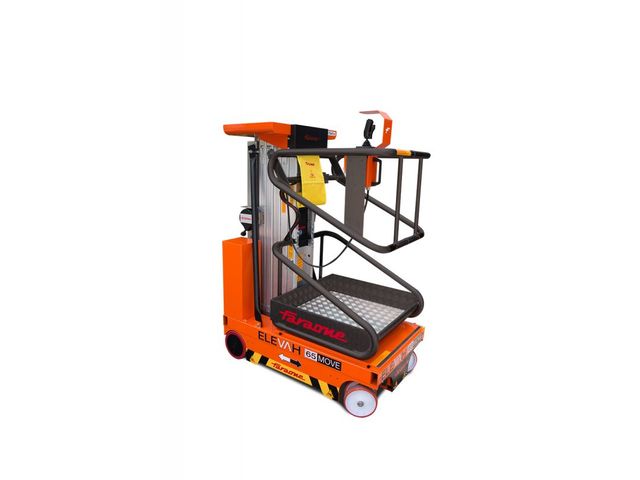

Elevah 65 Move is a compact and lightweight platform, ideal for carrying out maintenance work at height in total safety.
The closed machine measures only 1.72 m height, allowing it easily pass through very narrow spaces such as hallways and pass through all kind of doors. Thanks to its compactness and low weight, it is a suitable solution for theaters, museums, conference halls, in addition to the industrial sector.

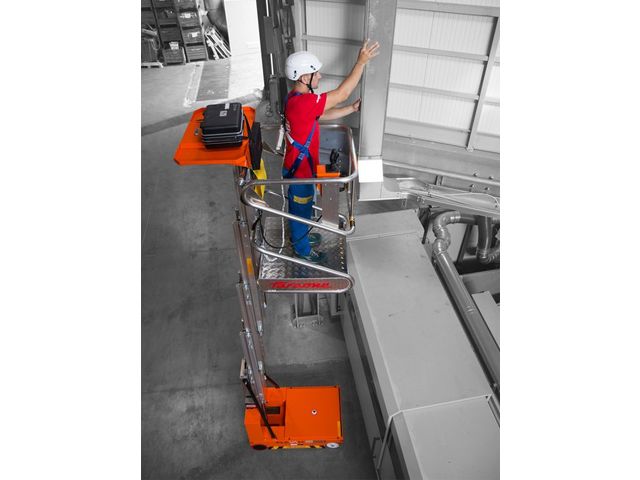

The basket has a comfortable and safe access that allows the operator to work at height protected on all sides, reducing the risks of injury and optimizing time.
Easy to maneuver thanks to the convenient joystick and the zero turning radius allows you to move easily even in the narrowest places.
The platform can be easily loaded onto a van thanks to the remote control and conveniently transported.
In the equipment and accessories section, you will find a list of standard components and accessories to customize the Elevah 65 Move and adapt it to your needs.
-
FRONT, REAR AND CEILING ANTI-COLLISION RADAR
-
SPEED CONTROL: speed limiter with basket on the ground
-
BASKET BLOCK: max. at 1,95 m height...
-
BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
-
ANTI-CRUSHING PROTECTION UNDER THE BASKET
MORE OPTIONAL
-
DIFFERENT COLORING OF MACHINE UPON REQUEST
-
GALVANIZING TREATMENT
-
DIRECTIONAL LOCKING OF SWIVEL WHEELS
-
TRUCK LOADING AND UNLOADING SYSTEM
Standard charger with retractable cable (Not included if the BKIT option is selected).
The machine can work at temperatures between -15° C and +40° C
Maintenance
Theatres
Museums
Conferences hall
Sport hall
