MAX. WORKING HEIGHT: 7,75 m
COMPACT: it measures only 78X128 cm
IT WEIGHT only 750kg
MAXIMUM CAPACITY: 200KG (1 person)
MANEUVERABLE: Turning radius= 0
COMFORTABLE: practical and safe access to the platform
STANDARD COLORING: grey and orange. Customizable coloring upon request
DOOR LOCK: it avoids the accidental opening of the basket
INCLINOMETER: anti-tilt system
DETECTORS: 3 acoustic and light presence indicators
ADDITIONAL REMOTE CONTROL: it allows the machine's translation during the loading phase on ramps
EMERGENCY DESCENT

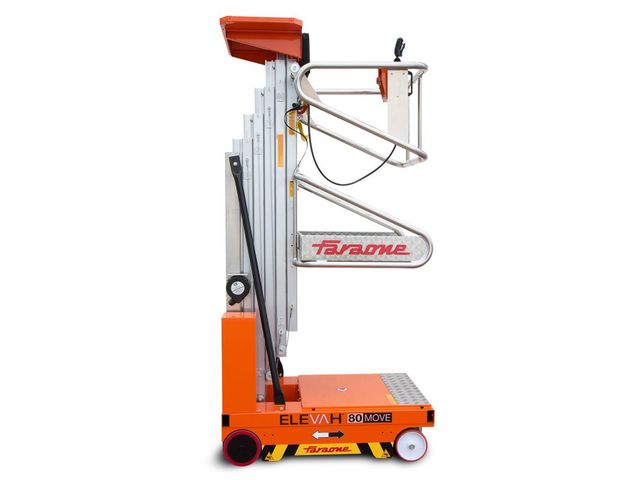

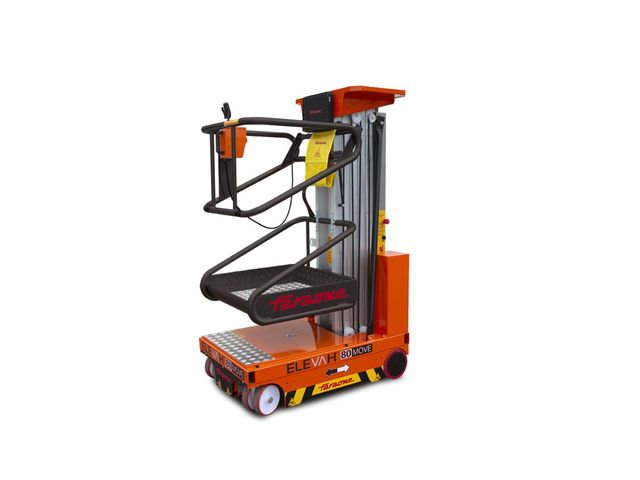

Elevah 80 Move is the lightweight (only 750kg) and compact platform that allows safe working at heights of up to 7,75 m. It is the ideal solution to carry out maintenance activities in places with doors and hallways and it can comfortably work on less resistant floors, such as those of theaters, museums, and conference halls.

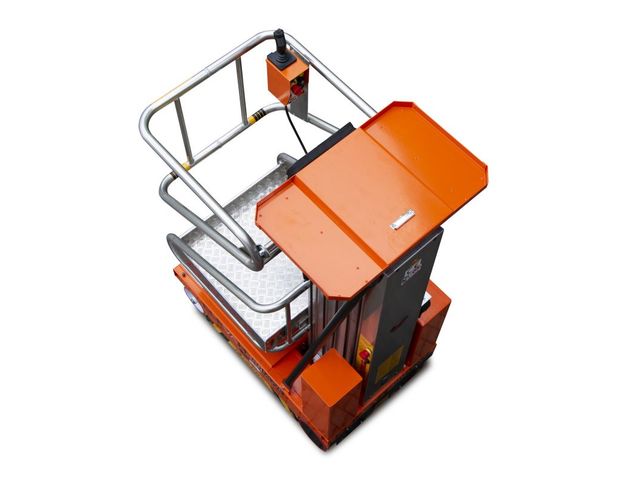

The basket has a comfortable and safe access that allows the operator to work protected on all sides, reducing the risks of injury and optimizing time.
Easy to steer, it is driven with one hand thanks to the convenient joystick and the zero turning radius allows you to move easily even in the narrowest places.
The platform can be easily loaded onto a van thanks to the remote control and conveniently transported.
In the equipment and accessories section, you will find a list of standard components and accessories to customize the Elevah 80 Move and adapt it to your needs.
-
FRONT, REAR AND CEILING ANTI-COLLISION RADAR
-
SPEED CONTROL: speed limiter with basket on the ground
-
BASKET BLOCK: max. at 1,95 m height...
-
BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
-
ANTI-CRUSHING PROTECTION UNDER THE BASKET
MORE OPTIONAL
-
DIFFERENT COLORING OF MACHINE UPON REQUEST
-
GALVANIZING TREATMENT
-
DIRECTIONAL LOCKING OF SWIVEL WHEELS
-
TRUCK LOADING AND UNLOADING SYSTEM
Standard charger with retractable cable (Not included if the BKIT option is selected)
The machine can work at temperatures between -15° C and +40° C
Maintenance
Theatres
Museums
Conference rooms
Sport halls
