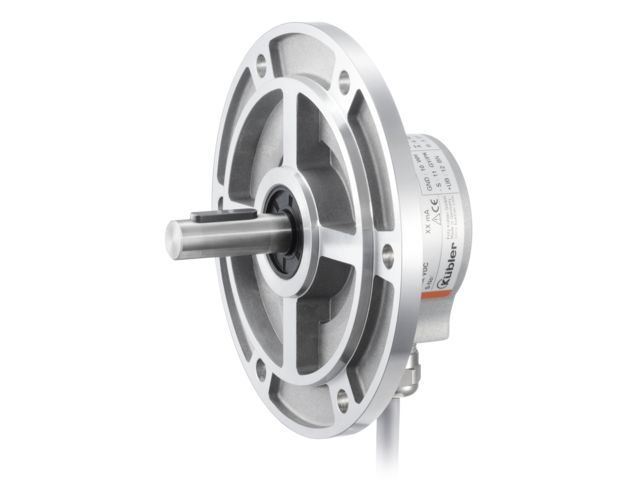

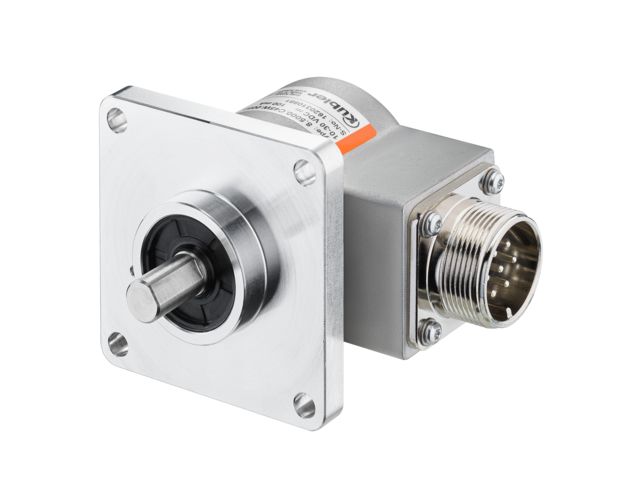

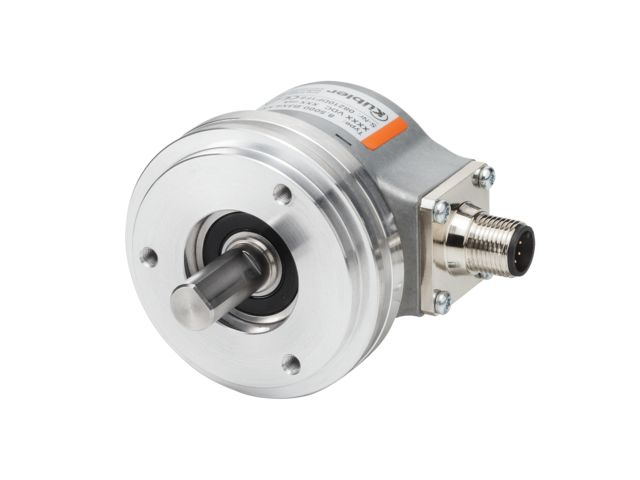

Encoders Incremental Sendix 5000, Ø 50 mm, optical, shaft.

Incremental encoders

Vote

“ The Standard Encoder for automation. ”

Ask for a quote

Presentation

Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40°C to +85°C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options. Special highlight: The 24one delivery commitment: We manufacture your desired encoder in 24 hours. This free service affords you planning reliability and maximum system availability.

Technical features

Dimension: Ø 50 mm Shaft type max. 12 mm shaft, with flat surface Protection level max. IP67 Connection types : Axial cable, Radial cable, M23 connector axial, M23 connector radial, M12 connector axial, M12 connector radial, MIL connector Measuring principle : optical Resolution max.: 5.000 ppr incremental Interfaces: Push-pull, TTL / RS422, Open Collector

Download the complete technical features
