External measuring cell: DMA HPM

Composition of liquids and density

Ask for a quote

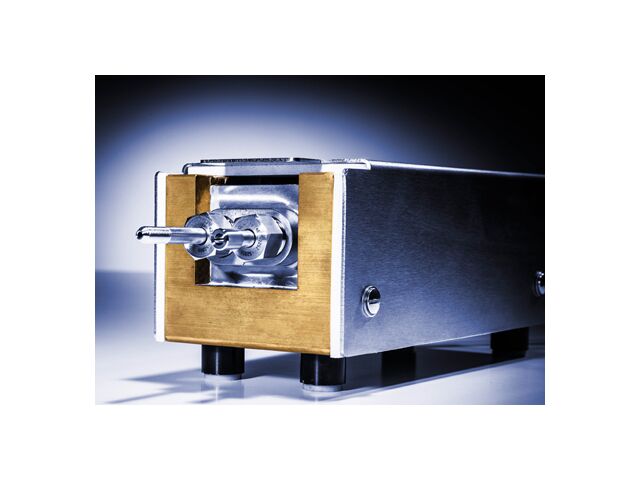

The External Measuring Cell DMA HPM measures density at sample pressures up to 1400 bar and temperatures from -10 up to 200 °C. Connect an mPDS 5 evaluation unit to control DMA HPM and read out the measurement data. To thermostat DMA HPM use a climatic chamber, an oven or a heating or cooling bath.

Density measurement at sample pressures up to 1400 bar and temperatures from -10 °C to 200 °C
Ideal for PVT analysis and enhanced oil recovery (EOR) experiments

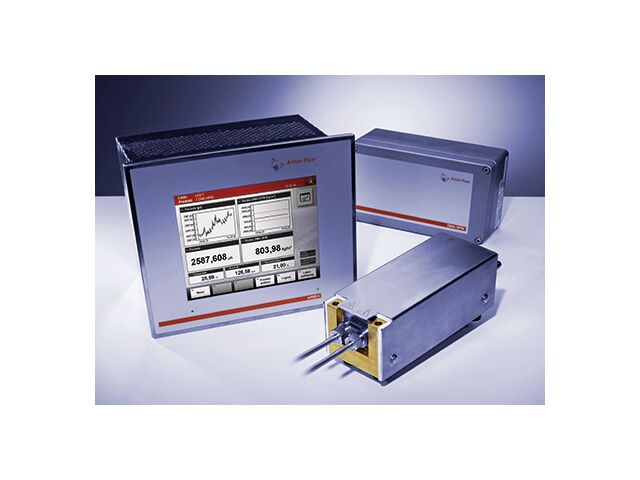

Remote data reading via evaluation unit mPDS 5

Measure safely at high pressures and high temperatures
No-hassle measurement at high temperatures and/or pressures
Only 2 mL sample required
Locate the mPDS 5 evaluation unit up to 100 m from DMA HPM
Ideal for PVT analysis and enhanced oil recovery (EOR) experiments
Memory for 999 adjustments
Store up to 999 adjustments in mPDS 5
Easy to select between single-point adjustment or wide range adjustment
Use wide range adjustment to measure the sample density over wide temperature and pressure ranges

Technical features

TEMPERATURE -10 °C to +200 °C PRESSURE Up to 1,400 bar Type: External measuring cell Minimum sample volume required: 2 mL Integrated memory: 999 settings Field of application: Industrial Flexible positioning: mPDS 5 unit can be positioned up to 100 m from the measuring cell
