Filling / sealing machine for large volume DOYPACK® pouches THD400 FOOD/DET THIMONNIER

Filling / sealing machine for large volume DOYPACK® pouches THD400 FOOD/DET

Doypack for liquid products

Vote

Ask for a quote Receive Documentation Contact the supplier

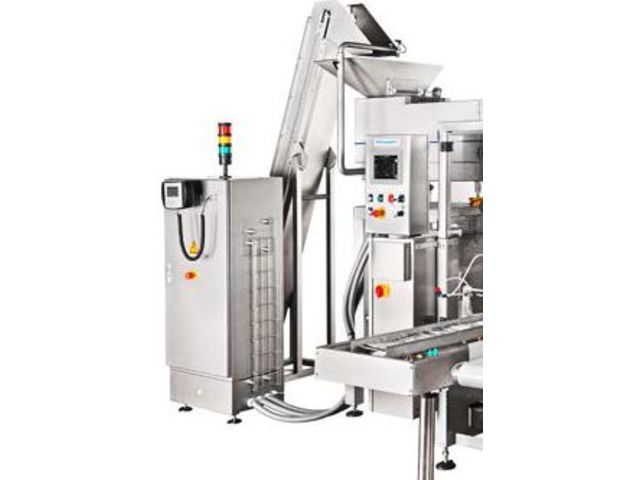

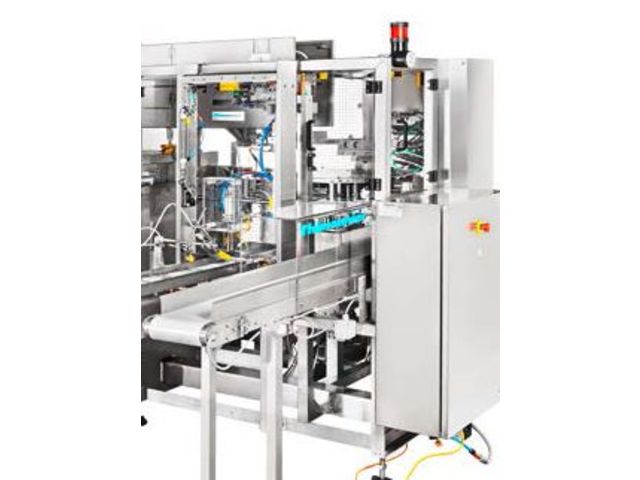

The rotary thd400 machine automatically fills and seals
preformed doypack® bags.

The bags are automatically transferred from the magazine to the retaining clamps placed on the carousel. They are then presented to the machine's 4 workstations where various operations are performed:

Opening, filling, sealing, cooling/discharge.

4-station carousel, which is rotationally controlled by servo-motors.

Bags held by sturdy, adjustable clamps for use with bags of different
shapes, ranging from 120-350 mm wide.

Bag opening system by air inflation and suction cup, with automatic pocket
detection.

Clamp opening and tension control by built-in pneumatic cylinders

Bi-active heat sealing system: independent temperature control on both jaws, chrome/anti-adhesive teflon treatment of jaws or teflon curtain, adjustable sealing pressure according to the bag material and dimensions.

The entire system is designed for quick and easy format changes (time estimated at 10 minutes).

OPTIONS :
Weighing doser
Dosers for liquid/viscous products by volumetric pumps or
electromagnetic flowmeters.
Output conveyor
Neutral gas or steam injection system
Inkjet marking system
Vacuum bell

Bags dimensions : min. 120 x 150 mm - max. 350 x 450 mm Bags volume : from 1 to 5 l Power supply: Three-phase 400 V + N - 50-60 Hz Compressed air supply: Supply pressure = 7 to 9 bar; Operating pressure = 6 bar; Q = 35 Nm3 / H
Download the complete technical features

FOOD INDUSTRY CHEMICAL / DETERGENT INDUSTRIES COSMETIC / PHARMACEUTICAL INDUSTRIES OTHER
