Filtr'Overspray with Media

Filter for paint booth

This product is temporarily unavailable.
Think about consulting similar products.

Make a request

Presentation

This filter uses the same principle than Standard Pleated Cardboard Filter with a polyester media sticked at the back in order to increase filtration efficiency for dry dusts.

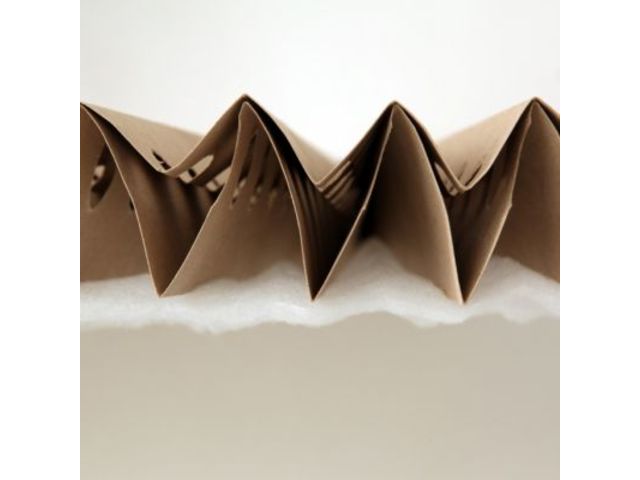

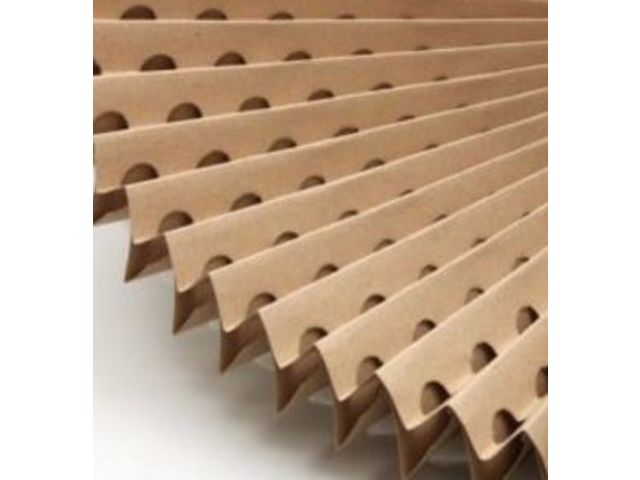

This filter is made of 2 layers of recycled kraft paper, perforated, pleated and glued with a polyester media at the back.
The quality of kraft paper (250g/m²) guaranties rigidity of the filter in all positions.

Standard widths :
• 1m
• 0,90m
• 0,75m

Other dimensions and cuts on demand.

Pleated Cardboard Filter with Polyester Media is well adapted to filtration of particles drying fast or alternation of wet and powdery oversprays.

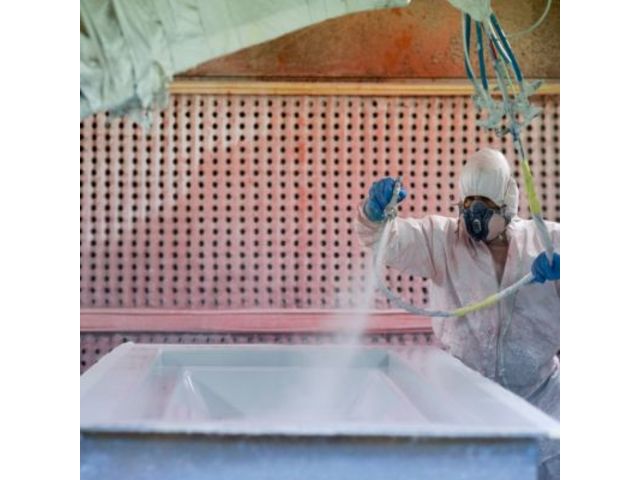

This filter is well adapted to filtration of any wet or semi-wet overspray particles in all industries :

• Woodworking
• Metalworking
• Plastic / Composite industries
• Car manufacturers and subcontractors

Technical features

Retention capacity : 5 to 20kg/m² (depending of density of particles) Filtration efficiency : up to 98% (depending of sprayed product) Air flow rates : 0,30 to 1m/s Pressure drop at 0,5m/s : : 20 Pa
