Flowmeter with flange taps 25/25

Differential pressure flow meter

Vote

Ask for a quote

Presentation

The 25/25 flowmeter is also called flowmeter with flange taps : The taps are located in the flanges.

The high pressure tap is 25,4 mm (1 inch) upstream of the inlet face and the low pressure tap is the same distance downstream of the outlet face of the orifice plate.

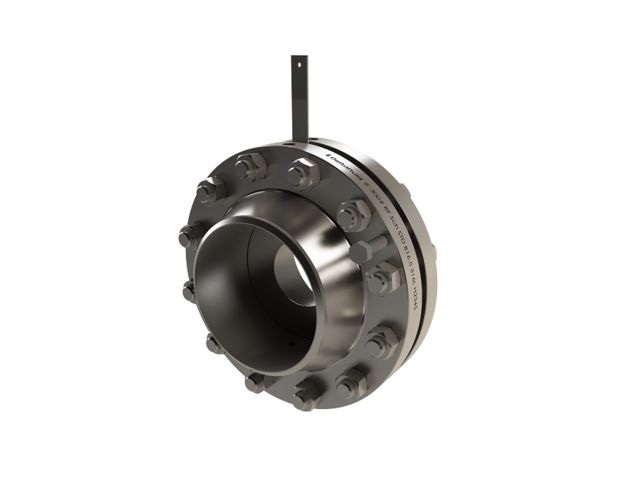

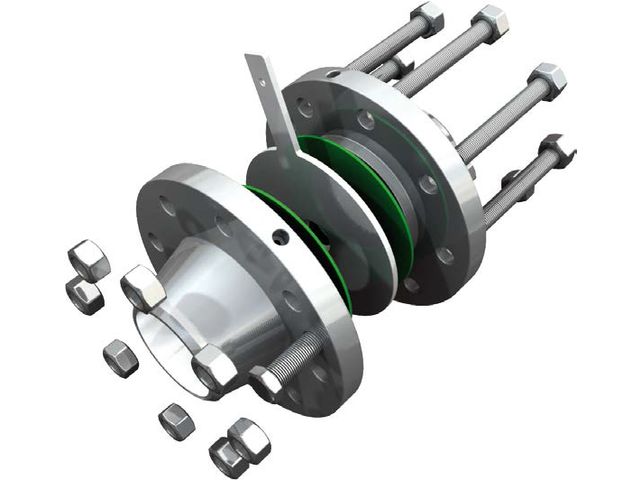

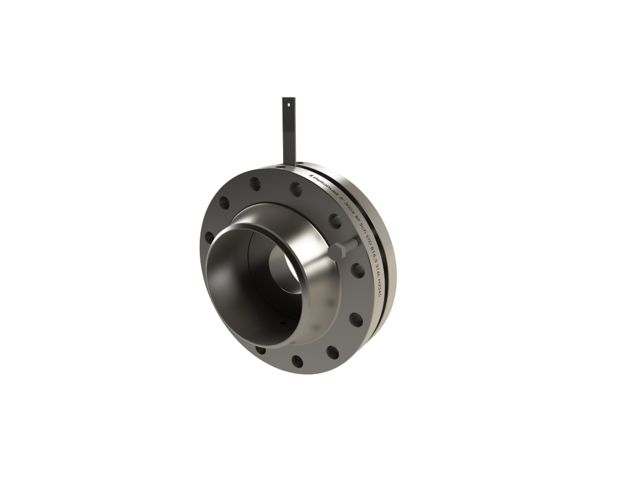

It often consists of a pre-assembled complete set including orifice plate mounted between orifice flanges This system is very commonly used and depends on the type of orifice plate, the type of assembly available and installation conditions.

• Pre-assembled complete set including orifice plate mounted between orifice flanges
• Orifice plate design based on ISO5167, BS1042, ASME.MFC.3M or ISO TR15377 :2007 industry standards
• Accuracy, repeatability and reliability of the flow element
• No need of calibration
• Easy and quick installation and commissioning
• Very long life-time product
• Robust, cost-effective and maintenance-free system
• Opportunity to manufacture a complete flowmeter including up and downstream lengths, temperature sensor & multi-variable transmitter

Technical features

Fluid temperature : -110°C to +800°C Type of fluid : Gas, steam, liquid (single-phase fluids) Maximum operating pressure : Limited by the flange rating Accuracy : <1% to 2,5% depending on the installation Flange taps : d ≥ 12.5 mm, 0.1 ≤ β ≤ 0.75, ReD ≥ 5000 & ReD ≥ 170 β² D
