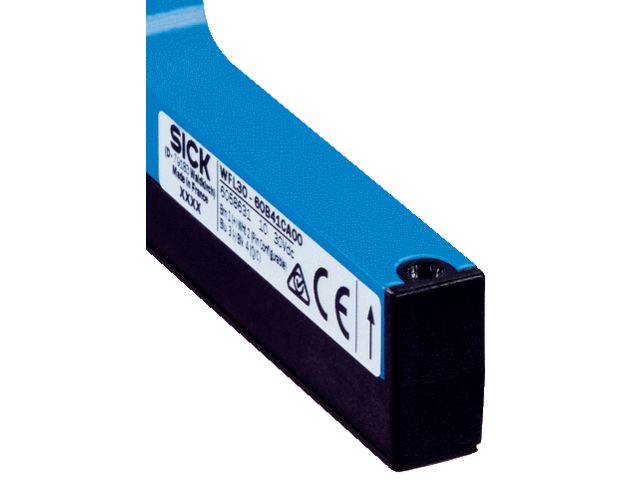

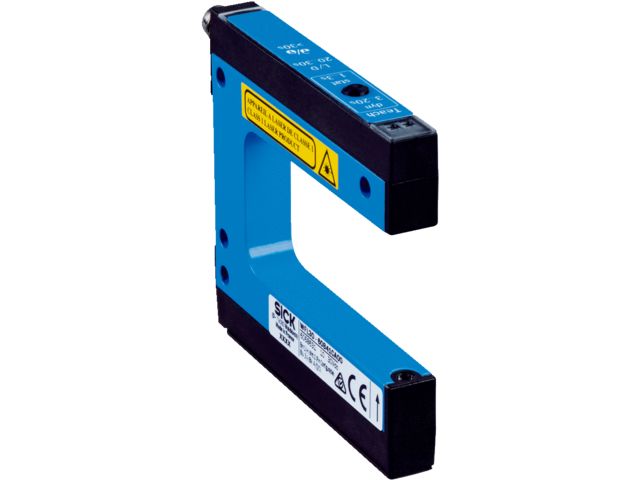

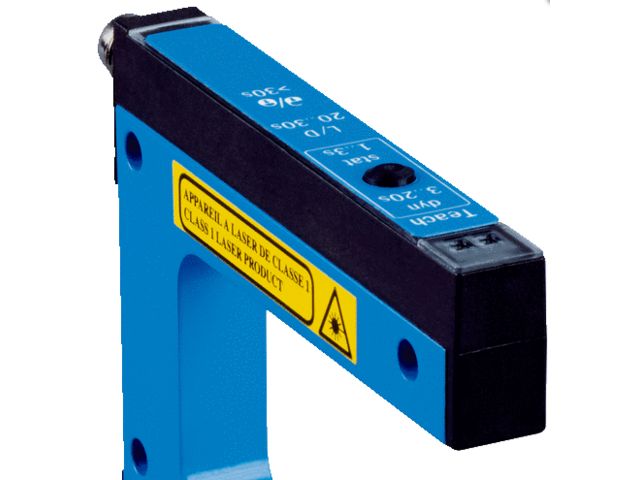

Fork sensors - WFL5-40B41CA00 SICK

Fork sensors - WFL5-40B41CA00

Vote

“ A highly precise laser beam ensures consistent measurement accuracy along the entire measuring range and reliable detection of extremely small objects - A visible laser beam enables easy alignment and fast adjustment - Reliable and simple setting via teach-in button ensures high process reliability - A wide range of different fork sizes increases mounting flexibility - Stable aluminum housing for use in harsh industrial environments - Thanks to IO-Link or external teach-in, the switching threshold can be adapted while the process is running, increasing process reliability - Easy to access data from the PLC via IO-Link ”

Ask for a quote

Presentation

WF Laser fork sensors are characterized by fast response times and a highly focused visible laser beam. The sender and receiver operate using a through-beam design and are in a single housing. No adjustments therefore need to be made. The sensors guarantee exceptionally high positioning accuracy and impress with their extremely fast response times and very fine resolution. As a result, the sensors are particularly suitable for detecting extremely small objects such as needles or wires. They are also recommended for the detection of transparent objects. A total of 21 WF Laser variants are available for use in a wide range of applications.

Technical features

Very precise Class 1 laser Simple and precise setting of the switching threshold via IO-Link, teach-in button, or plus/minus buttons Fast response time: 100 μs PNP and NPN switching output Light/dark switching function Stable aluminum housing with IP 65 enclosure rating Smart sensor with integrated IO-Link interface

Opinion on the product

Drop your rating on Fork sensors - WFL5-40B41CA00

Your answer to the rating from -

OTHER PRODUCTS MOVEMENT SENSORS FROM SICK

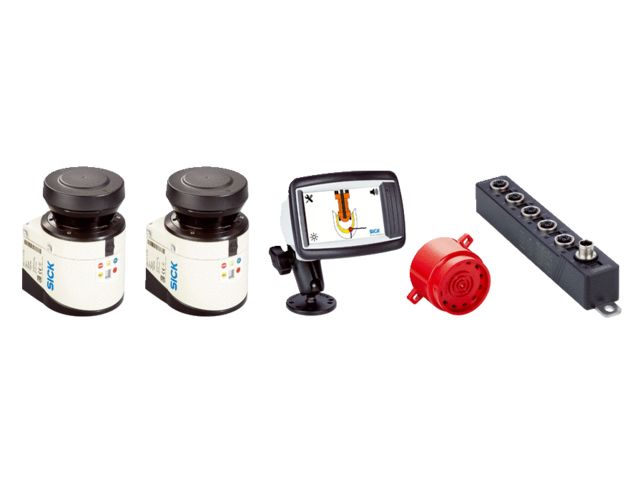

Driver assistance system : RAS Prime - RAS-1200

Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY MOVEMENT SENSORS

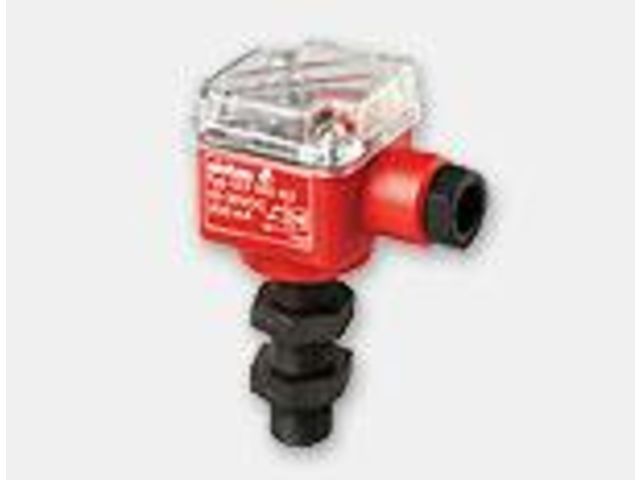

Magnetoresistive Sensors : M12 with connection box 12219.AU
