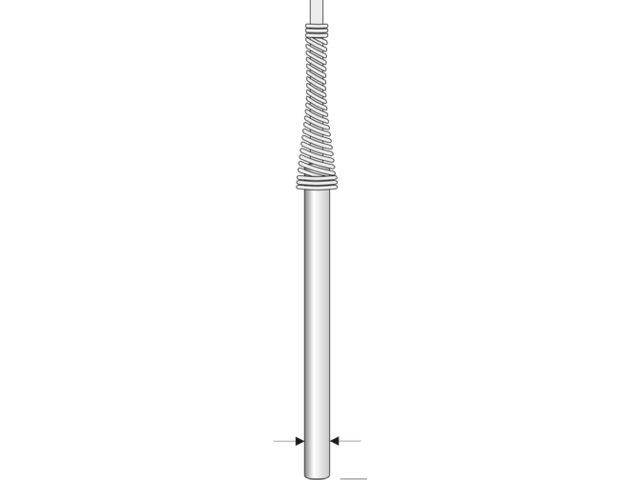

General purpose Pt100 probe with cable SI1105 series THERMIBEL S.A.

General purpose Pt100 probe with cable SI1105 series

Temperature probe

Vote

Ask for a quote Receive Documentation Contact the supplier

Sensing element

Pt100 single or duplex
with tolerance class B, A or AA according to IEC 751 (EN 60751)"

Temperature range

Standard -200 to +260°C.

External sheath

"AISI 316L seamless tube – wall thickness 1 mm
Diameter: 6 mm by default, other diameters available on request.
Length: standard 50 or 100 mm, any other length on request"

Process connection

"None
Sliding connector in option"

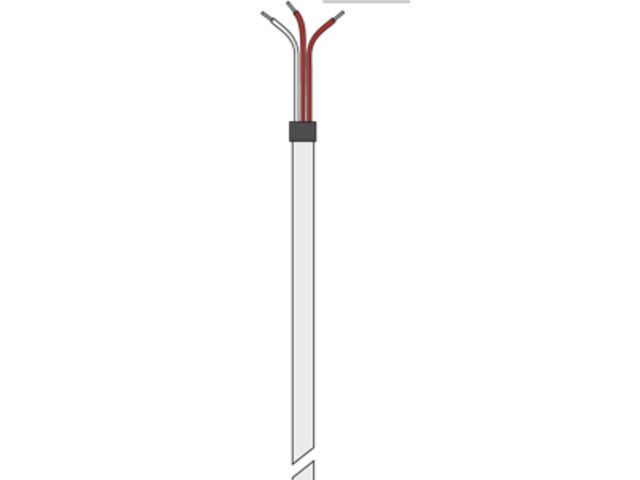

Cable

Standard PFA, other insulation materials available on request (see instrumentation cable catalogue for more details).
Cable length: 1 meter, other lengths are also available in option

Wiring

1 x 3-wire connection. (1 x 2, 1 x 4, 2 x 2, 2 x 3-wire connection available on request)

APPLICATIONS

General purpose measurement probe for temperature monitoring in storage and cold rooms, machines, testing and laboratory equipments

Drop your rating on General purpose Pt100 probe with cable SI1105 series

Your answer to the rating from -

OTHER PRODUCTS TEMPERATURE PROBE FROM THERMIBEL S.A.

Sheathed thermocouple with standard connector

Sheathed thermocouple with standard connector

 Ask for a quote

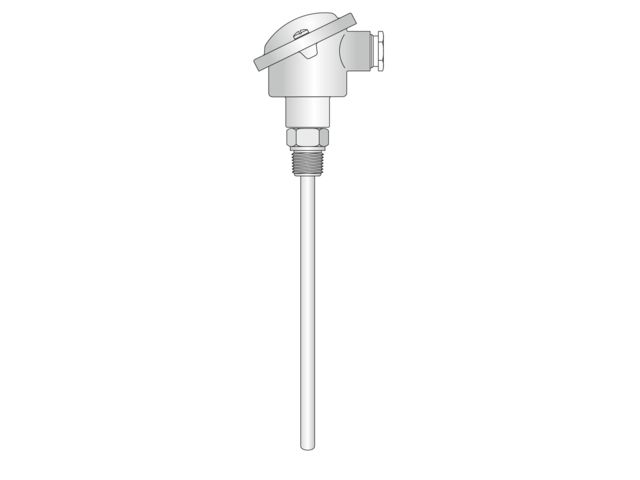

probe with process connector with extension tubes Straight Pt100 SI7-TI

probe with process connector with extension tubes Straight Pt100 SI7-TI

Ask for a quote

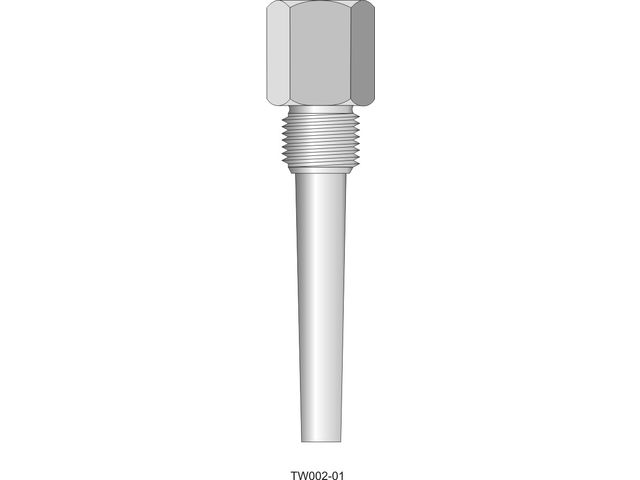

SCREW-IN BARSTOCK THERMOWELL - TAPERED - TW002-01

SCREW-IN BARSTOCK THERMOWELL - TAPERED - TW002-01

 Ask for a quote
WELD-IN BARSTOCK THERMOWELL ACCORDING TO DIN 43772 FORM 4 - TW007-01

WELD-IN BARSTOCK THERMOWELL ACCORDING TO DIN 43772 FORM 4 - TW007-01

 Ask for a quote
WELD-IN BARSTOCK THERMOWELL - STRAIGHT FORM AND STEP-DOWN SHANK- TW006-01

WELD-IN BARSTOCK THERMOWELL - STRAIGHT FORM AND STEP-DOWN SHANK- TW006-01

 Ask for a quote
Thermocouple with extension tube - low pressure version : TI-2 LP

Thermocouple with extension tube - low pressure version : TI-2 LP

Ask for a quote

Check out all the products from temperature probe from THERMIBEL S.A.

INTERNET USERS ALSO CONSULTED ON THE CATEGORY TEMPERATURE PROBE

RTD resistance sensors

RTD resistance sensors

 Ask for a quote
Modular RTD thermometer - basic technology | iTHERM TM401

Modular RTD thermometer - basic technology | iTHERM TM401

 Ask for a quote
Fiber optic temperature Sensor : LUXTRON M924 OEM

Fiber optic temperature Sensor : LUXTRON M924 OEM

Ask for a quote
Temperature and humidity digital probe

Temperature and humidity digital probe

Ask for a quote
Temperature Device | Adeunis Temp - Sigfox et LoRa

Temperature Device | Adeunis Temp - Sigfox et LoRa

Ask for a quote

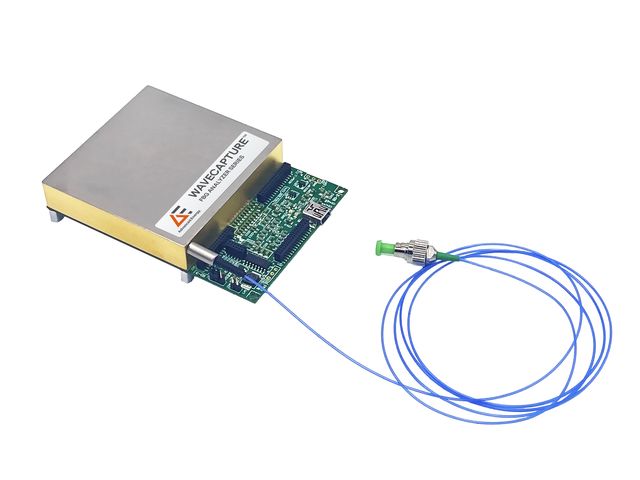

WaveCapture FBG Analyzer Series
