Heaters : Series I,II,III

Heat production equipment

Vote

“ simple control (open loop) compact inexpensive easy to use ”

Ask for a quote

Presentation

Open-Loop Spot Heaters

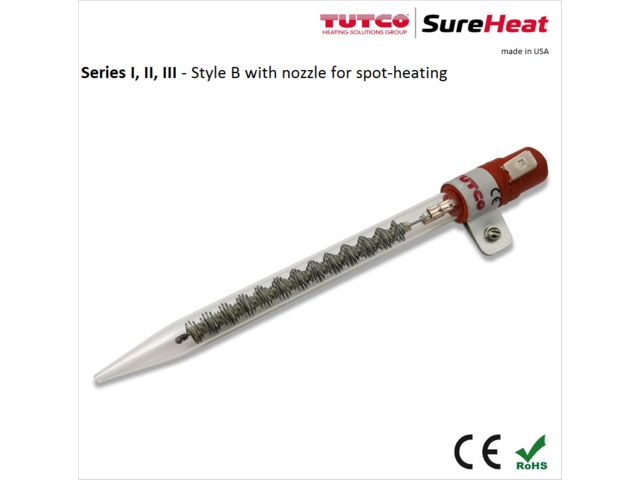

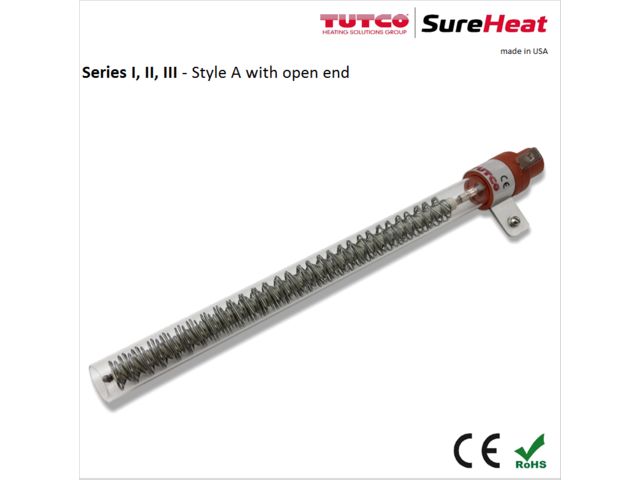

Series heaters are general purpose compact electric air heaters using Serpentine ™ heating elements within a Quartz open-end (Style A) or nozzle (Style B) for spot heating applications. The Series products are typically powered by open-loop (manual) power controllers. The air inlet is a high-temperature silicone rubber adapter with male spade power connectors and a ground. Mounting in existing or new equipment is easy using the grounding bracket. Air is typically supplied by compressed lines.

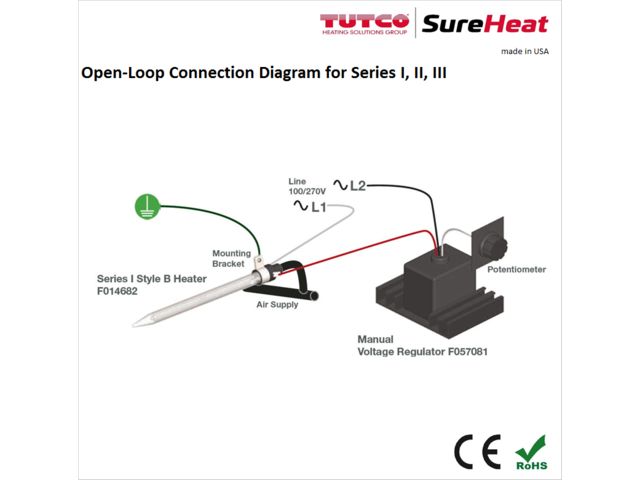

Open-Loop (Manual) Control

This simple method of control uses a manually operated power controller to apply a fixed voltage to the heating element. Using this system, the operator manually adjusts the controller to change heater temperature. If the airflow is suddenly interrupted, the element could fail. This is a common and inexpensive controller and often used with simple single phase standard catalog products.

Technical features

for temperatures up to 870°C up to 0,5 bar (gage) system pressure up to 2 kW single phase

Usage scope

all industries, research & development process heat or simulation and testing for air and all inert gases (compressed) drying / gluing / welding / shrinking / sterilizing / thermoforming

Opinion on the product
